Product Details:
Payment & Shipping Terms:
|
| Full Width: | 1225 Mm | Mast Height: | 2105 Mm |
|---|---|---|---|
| Overhead Guard Height: | 2140 Mm | Travel Speed: | 0-19 Km/h |
| Weight: | 4250 Kg | Original: | China |
| High Light: | Japanese Engine 2.5 Ton Forklift Truck,CE Certificated 2.5 Ton Forklift Truck,3000mm 4500mm 2.5 Ton Forklift Truck |
||

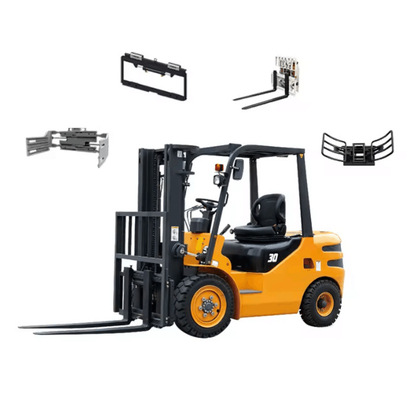

China CE Certificated Japanese Engine 3000mm 4500mm Lifting Height 2.5 Ton Forklift Truck with 2105 mm Mast Height
1,Internal combustion forklift refers to the use of diesel, gasoline or liquefied petroleum gas as fuel, powered by the engine forklift.
2,Load capacity is 0.5 tons -- 45 tons. Generally divided into: counterweight internal combustion forklift, container forklift (front lift), side forklift
3,Diesel forklifts are widely used in ports, stations, airports, freight yards, factory workshops, warehouses, circulation centers and distribution centers, etc.,
4,and can enter the cabin, carriages and containers for pallet cargo loading and unloading, handling operations, is an essential equipment in pallet transportation, container transportation.
|
Fork (Length * Width * Thickness)
|
1220*125*45 mm
|
|
Full Length without Fork
|
2682 mm
|
|
Full Width
|
1225 mm
|
|
Mast Height
|
2105 mm
|
|
Overhead Guard Height
|
2140 mm
|
|
Fork Distance (Outside, Max. / Min.)
|
1100/250 mm
|
|
Min. Turning Radius
|
2400 mm
|
|
Min. Ground Clearance (Mast)
|
126 mm
|
|
Wheel Base
|
1700 mm
|
|
Wheel Tread
|
1000 mm
|
|
Performance
|
|
|
Travel Speed
|
0-19 km/h
|
|
Lift Speed (Full Load / Empty Load)
|
460/540 mm/s
|
|
Fall Speed (Full Load / Empty Load)
|
450/420 mm/s
|
|
Max. Traction Force (Full Load / Empty Load)
|
20/16 kn
|
|
Max. Gradeability
|
20°
|
|
Weight
|
4250 kg
|
|
Forklift and Tire
|
|
|
Tire Type
|
Pneumatic Tire
|
|
Tire Specification
|
28x9-15-12PR / 6.50-10-10PR
|
|
Service Brake
|
Hydraulic-pedal
|
|
Parking Brake
|
Mechanical-pedal
|
|
Drive Element & Transmission
|
|
|
Storage Battery
|
12/80 V/Ah
|
|
Engine Brand
|
Xinchang 490/Quanchai490
|
|
Engine Power
|
36.8 kw
|
|
Engine Type
|
Diesel, 4-cylinder, 4-stroke, Water-cooled
|
|
Fuel Tank Capacity
|
70 L
|
|
Working Pressure
|
17.5 MPa
|
