| Lift Height: | 3000mm-6000mm | Min. Lifting Height: | 3m |
|---|---|---|---|
| Fork Length: | 1070-1970mm | Fork Width: | 125mm |
| Overall Dimensions: | 670*1225*2090mm | Certification:: | CE SGS |
| High Light: | 3000mm LPG Forklift Truck,6000mm LPG Forklift Truck |
||

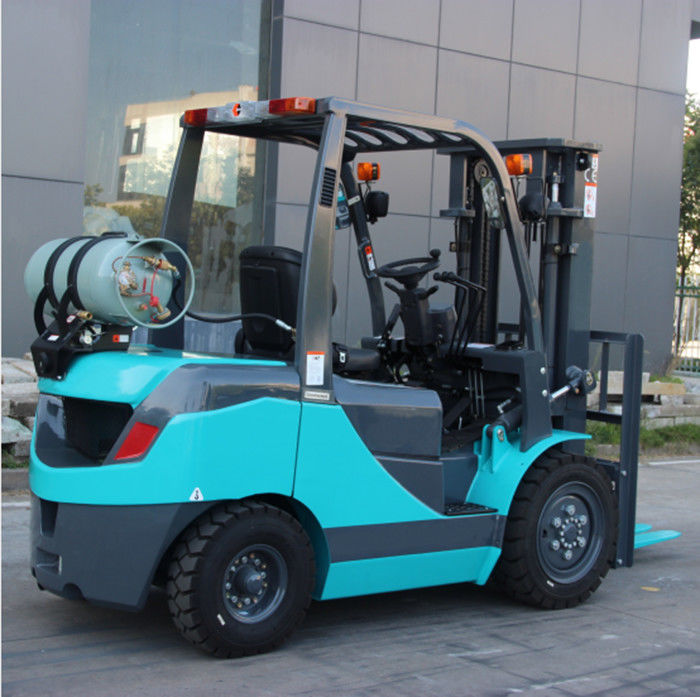

SGS Certificated 3T Nissan Engine Gas/ LPG Forklift Truck With 3000mm-6000mm Lift Height
1.Great Reliability
2.Innovative design
3.Simplified serviceability
4. Enhanced productivity
5.Wide-view mast
6.Solid overhead guard
7.Ergonomics seat
8.Powerful engine, Impaco convertor,Reliable instrument
| 1 | Power Type | Gasoline/LPG | ||
| 2 | Rated Capacity | kg | 3000 | |
| 3 | Load Centre | mm | 500 | |
| 4 | Lift Height | mm | 3000 | |
| 5 | Fork Size (L×W×T ) | mm | 1070×125×45 | |
| 6 | Mast Tilt Angle (F/R) | Deg | 6°/12° | |
| 7 | Front Overhang (Wheel center to fork face) | mm | 475 | |
| 8 | Ground Clearance(Bottom of mast) | mm | 120 | |
| 9 | Turning Radius (outside) | mm | 2440 | |
| 10 | Min. Intersecting aisle | mm | 2110 | |
| 11 | Max.Gradeability (No load/Full load) | % | 20 | |
| 12 | Wheelbase | mm | 1700 | |
| 13 | Service weight | kg | 4390 | |
| 14 | Battery (Voltage/Capacity) | V/Ah | 12/90 | |
