Product Details:
Payment & Shipping Terms:
|
| Bucket Capacity: | 1 M³ | Min.ground Clearance: | 200mm |
|---|---|---|---|
| Power: | 66/58KW/2300RPM | Width (Overall Tire): | 1300mm |
| Width (Without Bucket ): | 1280mm | Width (With Bucket): | 1320mm |
| Highlight: | underground mining equipment,load haul dump |
||

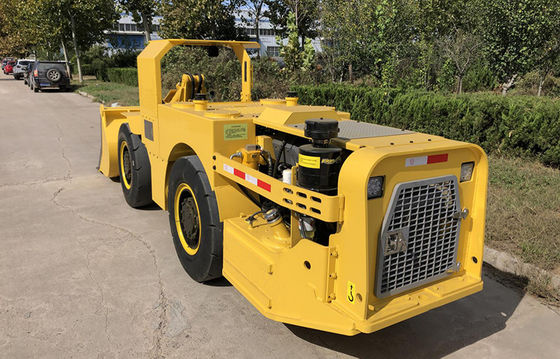

1 CBM Bucket Volume Underground Mining Dump Truck with 2 Ton Tramming Capacity,Underground L.H.D
1, The Parking and emergency brake of underground mining dump truck is spring applied, bydraulic released, multidisc oil immersed brakes inclosed on the axles.Service brake & Emergency brake
2, The underground mining dump truck have full hydraulic, centre-point articulation, steering controlled by mechanical control & hydraulic assistant, power steering with two double acting cylinders, Steering controlled by hydraulic steering control units
3, The underground mining dump truck have full hydraulic open center system with one gear pump connect the multiple directional control valve directed to bucket hydraulics, controlled by pilot controllig.
| Main Dimensions | Weights | |||
| Heignt-Bucket Raised | 3100mm | Deadweight | 7150kg±100 | |
| Length-Wheelbase | 2150mm | Payload(Tramming capacity) | 2000kg | |
| Length (Tramming position) | 5980mm-6172mm | Front axle,unladen | 3000kg | |
| Length (Loading position) | 6230mm-6422mm | Rear axle,unladen | 4150kg±100 | |
| Width (Overall Tire) | 1300mm | Front axle,laden | 6000kg | |
| Width (Without Bucket ) | 1280mm | Rear axle,laden | 3150kg±100 | |
| Width (With Bucket) | 1320mm | Breakout Force, lift | 3480 | |
| Height,laden (Top of Hood) | 1430mm | Breakout Force, tilt | 4710 | |
| Height,laden (Top of ROPS) | 2000mm | Wheels and Tires | ||
| Max.tipping height | 1180mm | |||
| Bucket capacity (SAE,heaped) | 1 m³/1.3 yd³ | Front wheels | ||
| Min.ground clearance | 200mm | Rim size | 7.5-20 | |
| Tire size | 10.00-20 | |||
| Engine | Tire pressure | 0.55Mpa | ||
| Rear wheels | ||||
| Manufacturer |
DEUTZ (made in Germany) CUMMINS (made in Japan) YANMAR (made in Japan) |
Rim size | 7.5-20 | |
| Type |
BF4L914(high altitude)/ D914L04/ B3.3C80 series 4TNV98 series |
Tire size | 10.00-20 | |
| Design |
Air cooled diesel engine Liquid cooled diesel engine |
Tire pressure | 0.55Mpa | |
