Product Details:
Payment & Shipping Terms:
|
| Min. Lifting Height: | 2065mm | Fork Length: | 1150mm |
|---|---|---|---|
| Fork Width: | 560mm | Weight (KG): | 465 Kg |
| Lifting Height: | 3500mm | Overall Dimensions: | 1860*700*2065mm |
| Highlight: | 1000kg Forklift Electronic Stacker,Fully Automatic Forklift Electronic Stacker,Electric Hydraulic Lifter Walking Walkie |
||

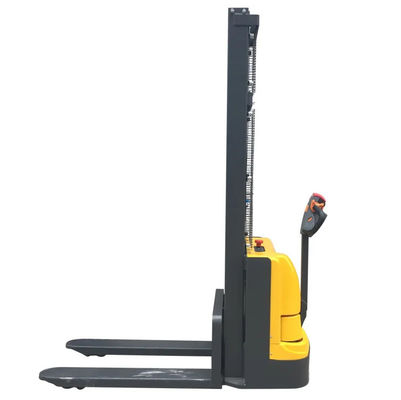

Fully Automatic Stacker Factory 1000kg Forklift Electronic Stacker Walking Walkie Hydraulic Electric Lifter High quality
1,The hydraulic cylinder uses two modes of operation, manual and foot, and the operation is not easy to fatigue.
2,Lightweight body with small turning radiusand low operating difficulty
3.The fork can be replaced with forging and plate pressing , suitable for multi-scene use.
| load (kg) |
1000/1500
|
| Lifting height (mm) |
1600/2000/2500/3000/3500
|
| Frame static height (mm) |
2065/1565/1815/2065/2315
1990/1490/1740/1990/2240 |
| After lifting the total height (mm) |
2065/2532/3032/3532/4032
2045/2045/2950/3450/3950
|
| Total body width (mm) |
800
|
| Overall length (mm) |
1860
|
| Fork width (mm) |
560/700
|
| Fork size (mm) |
1150*160*55
|
| Tire |
Polyurethane
|
| Battery (V/AH) |
24/80 (yellow) 24/120(sliver)
|
| Total weight (kg) |
450/500
|
