Product Details:
Payment & Shipping Terms:
|
| Min. Lifting Height: | 45mm | Fork Length: | 1000mm |
|---|---|---|---|
| Fork Width: | 210-700mm | Weight (KG): | 1650 Kg |
| Load Center Distance(mm): | 500mm | Overall Dimensions: | 3150*940*1950mm |
| High Light: | Small Adjustable Electric Pallet Forklift,1 Ton Electric Pallet Forklift |
||

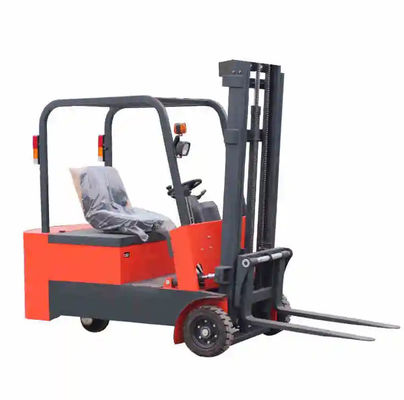

Hot Sale 1ton 2ton Small Adjustable Durable Electric Pallet Fork Lift for sale Battery Forklift 3 Meter Stacker
1, Portable forklift,small space, easy to use.
2,integrated bodywork roof to protect driver's safty more effectively.
3, wide view to monitor cargo and drop of cargo during operation.
4,The seat is equipped with an emergency power- off button that can cut off the power in the shortest possible time.
5Explosion-proof LED lamp,light after the front lighting, easy to operate at night
| model | CPDS-15/18/20(C/H)-16/20/25/30/35 |
| Load (kg) | 1500/1800/2000 |
| Form of steel | C/H |
| Lifting height (mm) | 1600/2000/2500/3000/3500 |
| Frame static height (mm) | 2150/1950/1950/2150/2400 |
| After lifting the total height (mm) | 2300/2650/3150/3650/4150 |
| Load center distance (mm) | 500 |
| Fork minimum clearance from the ground(mm) | 40 |
| Wheelbase (mm) | 1540 |
| Turning radius (mm) | 3460 |
| Minimum channel requirement (mm) | 3300 |
| Minimum ground clearance (body / gantry) (mm) | 120/120 |
| Overhead guard height (mm) | 1940 |
| Total length (with fork / without fork) (mm) | 3150/2150 |
| Total body width (mm) | 940 |
| Fork width (mm) | 210-700 |
| Fork size (forging) mm | 1000*100*35 |
| Chassis height from the ground (mm) | 80 |
| Number of front / rear wheels (*=drive wheel) | 2/2+1* |
| Front/rear auxiliary wheel size (mm) | 590*179/250*80 |
| Front track (mm) | 980 |
| Front suspension (mm) | 430 |
| Lifting speed (full load / no load) (mm/s) | 100/140 |
| Falling speed (full load / no load) (mm/s) | 260/120 |
| Driving speed (full load / no load) (km / h) | 4.5/5.5 |
| Maximum gradient (full load / no load) (mm / s) | 5.0/8.0 |
| Tire | Vacuum pneumatic tire/Solid rubber tires |
| Driving method | Sitting and driving |
| Drive form | electric |
| Braking method | Electromagnetic brake |
| Battery (V/AH) | DC24/120AH*4P |
| Lift the motor | 2.2KW |
| Walking motor | 1.2KW |
| Hydraulic oil | 46# |
| Total Weight(KG) | ≈1850/2150/2350 |
