Depth: | 13m | Drilling Diameter: | 500-1500mm |
---|---|---|---|
Power: | 110kw | Type: | Four-Wheel Trailer |
Weight: | 10800kg | Specification: | 8500*2250*3100mm |
Highlight: | 110KW Road Construction Machinery,13m Depth Road Construction Machinery,1500mm Diameter Rotary Drilling Rig |

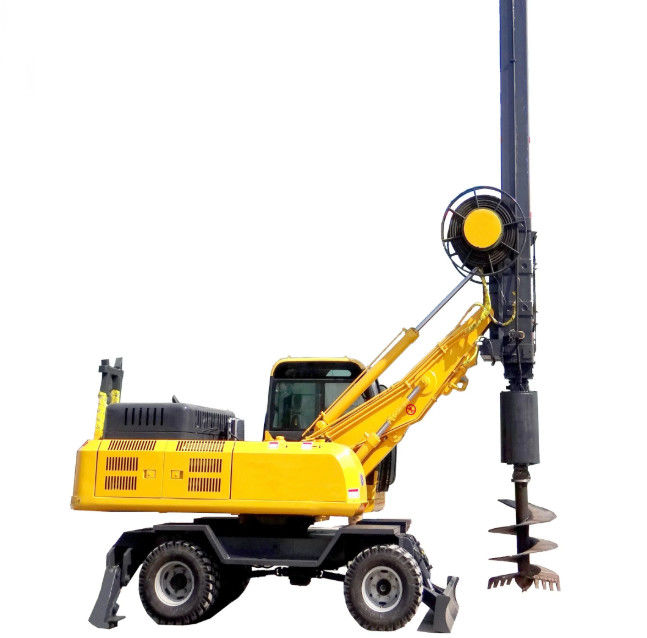

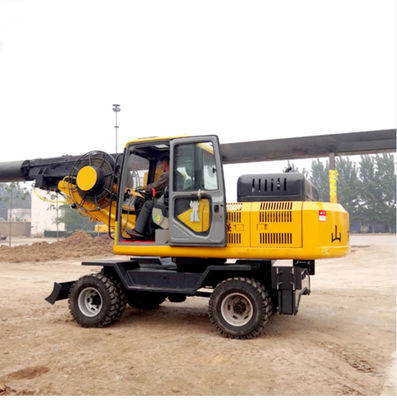

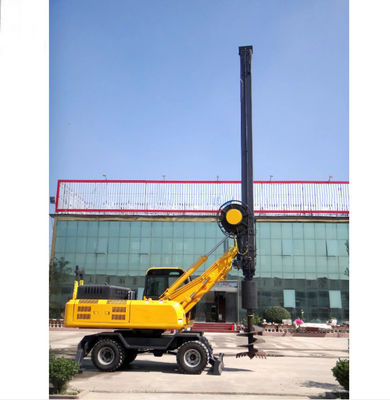

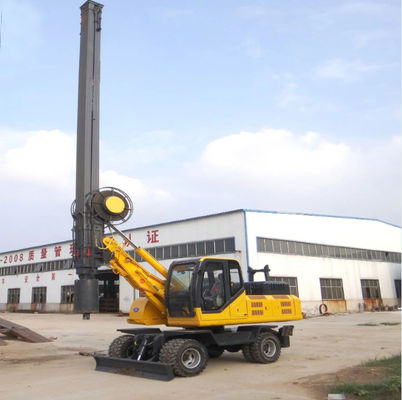

13m 110KW Engine Drilling Machine Four-Wheel Drive Rotary Drilling Rig with 500-1500mm Drilling Diameter
1.Cummins electric control turbo-supercharged engine is used.It complies with Euro III emission standard,In addition,it has strong power,
which is sufficient to satisfy the construction on the plateau. Its noise is up to the national standard.
2.The new generation rotary drive adopts multi-gear control, self-adaptive techniques, and double buffering system which can increase
drilling efficiency and safety.
3.Highly automatization system,advanced hydraulic system and heavy wide chassis ensure efficient,safe and stable operation.
4.This machine is applicable to slop shield piles,civil construction,new rural construction,municipal construction,and the strata
Parameter
Model | 13m | ||
Working mode | Pressure drilling | ||
Drilling diameter | mm | 500-1500mm | |
Depth | m | 13 | |
Dimension | m | 8500*2250*3100 | |
Weight | t | 10.8 | |
Tire model | / | 825-16 | |
Engine | Model | / | Weichai/Yuchai |
Power | kw | 110 | |
Rotation rate | r/min | 2400 | |
Torque | kn.m | 22000-30000 | |
Drilling rate | r/min | 30-50 | |
Max.pull force | kn | 150 | |
Max.stroke | m | 11-22 | |
Rope diameter | mm | 18 | |
Rotation angle | ° | 180 | |
Speed | km/h | 30 | |
Max.slope | ° | 25 | |
Optional | 1.Air conditioning 2.Electrical Machinery(6G,30kw) 3.Double pump(rate of flow 40/80) 4.Double dynamic model |
