Product Details:
Payment & Shipping Terms:
|
| Min. Lifting Height: | 3000mm | Fork Size (L×W×T ): | 1220×175×80 |
|---|---|---|---|
| Engine: | ISUZU | Wheelbase: | 2800mm |
| Load Centre: | 600mm | Rated Capacity: | 10000kg |
| High Light: | Duplex Road Construction Machinery,7M Lift Road Construction Machinery,10T Diesel Forklift |
||

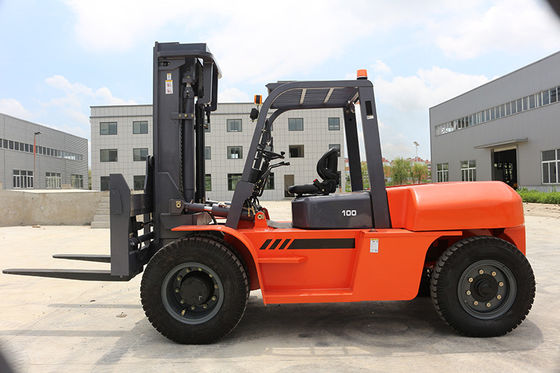

Automatic Transmission 10T Diesel Forklift With Duplex 6-7M Lift Height And 1220mm Lenght Fork
-- Wide-view Mast -- offer enhanced forward visibility, thus more efficiency and safty during operation
-- Solid Overhead Guard -- specially designed for additional security
-- Ergonomics Seat -- much more comfortable and fatigue- reliveable after long time operation
-- Powerful Engine -- imported brand engine ensures high performance, safty and efficiency
-- Super low & Non-slip step
| 1 | Power Type | Diesel | ||
| 2 | Rated Capacity | kg | 10000 | |
| 3 | Load Centre | mm | 600 | |
| 4 | Lift Height | mm | 6000-7000 | |
| 5 | Fork Size (L×W×T ) | mm | 1220×175×80 | |
| 6 | Mast Tilt Angle (F/R) | Deg | 6°/12° | |
| 7 | Front Overhang (Wheel center to fork face) | mm | 750 | |
| 8 | Ground Clearance(Bottom of mast) | mm | 250 | |
| 9 | Turning Radius (outside) | mm | 3950 | |
| 10 | Min. Intersecting aisle | mm | 3590 | |
| 11 | Max.Gradeability (No load/Full load) | % | 20 | |
| 12 | Wheelbase | mm | 2800 | |
| 13 | Service weight | kg | 13300 | |
| 14 | Battery (Voltage/Capacity) | V/Ah | (12/80)x2 | |
| 15 | Overall Dimension | Length to face of fork(Without fork) | mm | 4290 |
| 16 | Overall Width | mm | 2180 | |
| 17 | Mast Lowered Height | mm | 2830 | |
| 18 | Mast Extended Height(With backrest) | mm | 4330 | |
| 19 | Overhead Guard Height | mm | 2580 | |
| 20 | Speed | Travel (No load) | km/h | 26 |
| 21 | Lifting(Full load) | mm/s | 310 | |
| 22 | Tire | Front | mm | 9.00-20-14PR |
| 23 | Rear | mm | 9.00-20-14PR | |
| 24 | Engine | Model | 6BG1 | |
| 25 | Manufacture | ISUZU | ||
| 26 | Rated output/r.p.m. | kw | 82.3/2000 | |
| 27 | Rated torque/r.p.m. | N·m | 416/1400-1600 | |
| 28 | No.of Cylinder | 6 | ||
| 29 | Bore×Stroke | mm | 105*125 | |
| 30 | Displacement | cc | 6494 | |
| 31 | Fuel Tank Capacity | L | 140 | |
| 32 | Transmission | Type | Powershift | |
| 33 | Stage FWD/RVS | 2/2 | ||
| 34 | Operating Pressure for Attachment | Mpa | 19 | |
