| Output: | 20m³/h | Power Type: | Diesel |
|---|---|---|---|
| Pumping Pressure: | 8 Mpa | Concrete Cylinder Diameter: | Φ140×750mm |
| Main Motor Powder: | 39kw | Fuel Tank Capacity: | 150L |
| High Light: | 20m3/H Concrete Pump Trailer,39kw Concrete Pump Trailer |
||
20 m³/h Output Concrete Pump Trailer,Small Diesel Concrete Pump with Changchai Engine
1,Concrete pump trailer, also called trailer mounted concrete pump or concrete trailer pump, is the kind of concrete pump mounted on the moveable trailer to to convey concrete to hard to access flexibly.
2,Our new generation concrete pump trailer is specially designed and engineered with latest differential pressure induction control technology to keep reliability, simplify and efficiency.
3,Our concrete pump trailer main components such as wear plate, piston, cylinder, discharge port and hopper are made with wear resistant high chrome alloy materials, strict welding and heat treatment processes.
4,our concrete trailer pump is equipped with advanced hydraulic system which can be powered by diesel engine or electric motor for your selection. It features energy saving, large flow, wider adaptability, high efficiency, good wear resistance and easy to operate, it is widely used for concrete pumping in housing building, elevated road, bridge or tunnel construction projects.

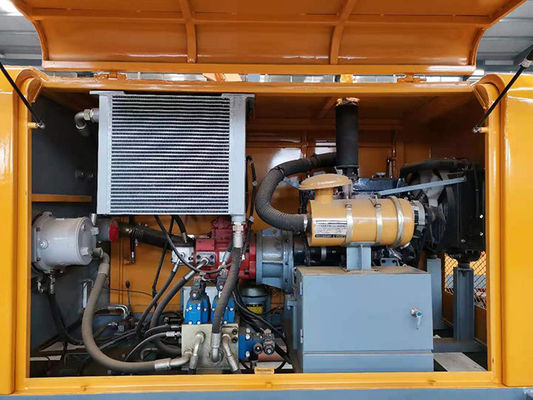

5,Its main parts include diesel engine changchai, Kawasaki main oil pump, Germany Bolseen valves, Italy Manuli high-pressure pipes, glass-like plate and cutting ring, concrete cylinder etc.
| Item | Unit | |
| Max. Theoretical Concrete Output | m³/h | 20 |
| Max. Concrete Pumping Pressure | Mpa | 8 |
| Distribution valve | S Valve | |
| Conveying tube inner Dim | mm | Φ125 |
| Max. Conveying Distance (Horizontal Distance/Perpendicular Height) | m | 200/100 |
| Concrete Cylinder Diameter | mm | Φ140×750 |
| Hopper Capacity/ Filling Height | m³/mm | 0.3/1100 |
| Maximum aggregate size | mm | 20 |
| Concrete slump range | mm | 120-230 |
| Main motor powder | kw | 39 |
| Rated speed | r/min | 2200 |
| Fuel tank capacity | L | 150 |
| Cleaning mode | High pressure washing | |
| Dimension | mm | 4100*1400*1450 |
| Total Weight (including oil) | kg | 2520 |
