Product Details:
Payment & Shipping Terms:
|
Capacity (Load): | 21 - 30t | Drive Wheel: | 6x4 |
---|---|---|---|
Emission Standard: | Euro 2 | Engine Capacity:: | > 8L |
Size: | 10330x2500x3850 | Gross Vehicle Weight: | 25000KGS |
Highlight: | self loading concrete mixer,mobile concrete mixer |

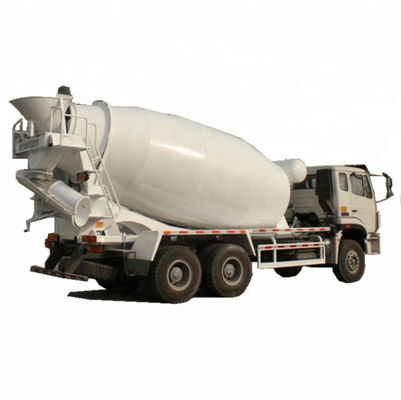

SINOTRUK HOWO 6x4 Concrete Mixer Truck 8 CBM Capacity
Operating voltage:24V,negative grounded
Starter:24V,7.5 Kw
Alternator:3-phase,28V,1500 W
Batteries:2×12 V,165 Ah
horn,headlamps,fog lights,brake lights,indicators and reverse light
Option:2x180Ah Batteries
Driving Type 6×4 | |||
Chassis Model | ZZ1257N3841 | ||
Model | ZZ5257GJBN3841W | ||
Cab | HW76 Lengthen cab | ||
Engine(Hp) | 336 | ||
Power(Kw) | 247 | ||
Cubage(m3) | 8 m3 | ||
Engine | Model | WD615.69 | |
Horsepower | 336 | ||
Maximum output Kw/r/min | 247/2200 | ||
N.m/r/min Maximum torque | 1350/1300-1600 | ||
Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection | ||
Bore x Stroke | 126×130mm | ||
Valve | 2 | ||
Displacement | 9.726L | ||
Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan | |||
silicone oil fan; Cold-start with electric-inlet-air heating System (180Ah battery) | |||
Cab | SINOTRUK HW76 Lengthen cab,single bunk,adjustable steering wheel,EURO new type heating & ventilating system, German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner Option: right hand driving; color |
