| Power(W): | 132 Kw | Weight: | 16000kg |
|---|---|---|---|
| Emission Standard: | Euro 4 | Size: | 7530x2320x3320mm |
| Loading Capacity: | 4 Cubic Meters | Driving Type: | 4X2 LHD |
| High Light: | self loading concrete mixer,mobile concrete mixer |
||

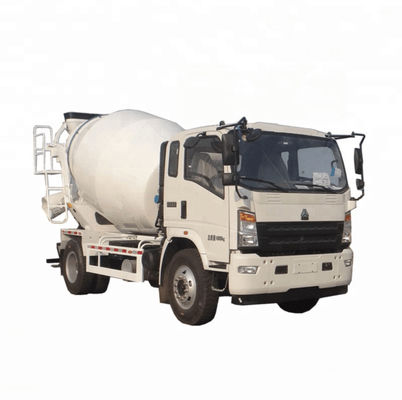

HOWO 4X2 4 CBM Concrete Mixer Truck 180HP Euro 4
Improved Braking Technology
By making full use of engine braking, braking distance has been reduced by 15% and brake lining wear is decreased by 50%.
Energy-saving Technology
The engine dual power mode, coupled with the unique intelligent transmission's power matching technology results in a 10% fuel savings.
Curb weight 7500 kg
GVW 16000 kg
Dimension (L*H*W) 7530×2320×3400 mm
Wheel base 4200 mm
Min.ground clearance 225 mm
Min.turning diameter 16 m
Fuel consumption 21 L/100km
Braking distance V0=30km/h ≤9/8.5 m (Full/Empty load)
Engine
Bore × StrokeΦ 108×115 mm
Displacement 4.214 L
Rated power/Rev speed 140/2800 kW/rpm
Max.torgue/Rev speed 450/1400-1700 N.m/rpm
Emissions Euro 3
Drum
Mixing capacity 4 m³
Feeding speed ≥1.5 m³/min
Discharge speed ≥1 m³/min
Discharge residual rate ≤0.95%
Slump scope 50-210 mm
Water tank capacity 300 L
Water pressure 0.35-0.38 Mpa
Reduction gear T60
Hydraulic pump High-teck
Motor High-teck
