| Capacity (Load): | 21 - 30t | Drive Wheel: | 6x4 |
|---|---|---|---|
| Horsepower: | 336HP/248KW | Size: | 9250x2500x3980 |
| Gross Vehicle Weight: | 25000 | Loading Capacity: | 12 Cubic Meters |
| High Light: | self loading concrete mixer,mobile concrete mixer |
||

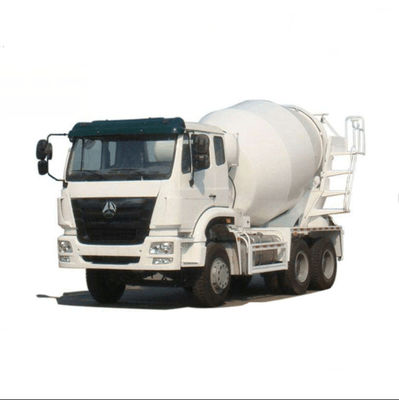

SIINO TRUCK 6x4 336HP Concrete Mixer Truck 12CBM
This Concrete Mixer Truck series of products produced by adopt Germany's proprietary technology.
Products material requirements, the production process, acceptance criteria, all adopt the technology
provided by the German standards.
This products use the imported reducer, motor and hydraulic pump. Dynamic force output by the
second class chassis full power take off through the shaft power to the hydraulic pump, hydraulic pump
produces hydraulic energy through tubing to the hydraulic motor, hydraulic motor to convert hydraulic
energy into kinetic energy and through reducer then reduce and increase twist to the mixing tank, by
adjusting the (double acting variable) servo controller of hydraulic pump Angle so as to realize
controlling turning and speed of mixing drum, then to realize the concrete charging, stir and discharging
operation.
| Driving Type 6×4 | |||
| Chassis Model | ZZ1257N3841 | ||
| Model | ZZ5257GJBN3841W | ||
| Cab | HW76 Lengthen cab | ||
| Engine(Hp) | 336 | 371 | |
| Power(Kw) | 247 | 273 | |
| Cubage(m3) | 10m3 | ||
| Engine | Model | WD615.69 | WD615.47 |
| Horsepower | 336 | 371 | |
| Maximum output Kw/r/min | 247/2200 | 273/2200 | |
| N.m/r/min Maximum torque | 1350/1300-1600 | 1460/1300-1600 | |
| Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection | ||
| Bore x Stroke | 126×130mm | ||
| Valve | 2 | ||
| Displacement | 9.726L | ||
| Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan | |||
| silicone oil fan; Cold-start with electric-inlet-air heating System (180Ah battery) | |||
| Cab | SINOTRUK HW76 Lengthen cab,single bunk,adjustable steering wheel,EURO new type heating & ventilating system, German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner Option: right hand driving; color |
||
