Product Details:
Payment & Shipping Terms:
|
| Load Capacity: | 1T - 5T | Power: | AC Motor |
|---|---|---|---|
| Min. Width Of Right Angle Stacking: | 3670 | Fork Length: | 1070mm |
| Min. Width Of Right Angle Channel: | 1990 | Fuel: | Electric |
| High Light: | 1070mm Electric Forklift,6.5M Electric Forklift |
||

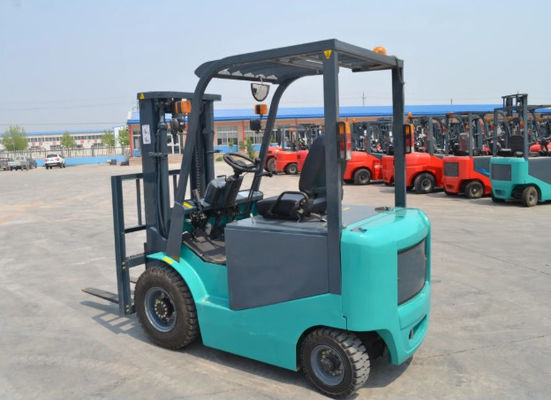

2Ton Electric Forklift With AC Motor
1,Load capacity: 2000kg
2,ZAPI Controller
3,Auto Transmission
4,Load center: 500mm
5,Lift height: 3-6.5M
6,CST Penumatic tires
7,Fork 1070mm
| 1 | Characteristics | Fuel type | Electric | |||
| 2 | Load capacity | kg | 2000 | |||
| 3 | Load center | mm | 500 | |||
| 4 | Lift height | mm | 3000 | |||
| 5 | Full free lift height | mm | 135 | |||
| 6 | Fork dimension | mm | 1070×125×50 | |||
| 7 | Mast tilting angle | Front/Rear | Deg. | 6/12 | ||
| 8 | Min. turning radius | mm | 2090 | |||
| 9 | Min. width of right angle stacking channel | mm | 3760 | |||
| 10 | Min. width of right angle channel | mm | 1990 | |||
| 11 | Groud clearance | mm | 120 | |||
| 12 | Overhead guard height | mm | 2150 | |||
| 13 | Front overhang | mm | 470 | |||
| 14 | Performance | Max. travel speed | Full load | km/h | 19 | |
| 15 | Max. lift speed | Full load | mm/s | 460 | ||
| 16 | Max. traction power | Full load | KN | 22 | ||
| 17 | Max. gradeability | % | 20 | |||
| Dimensions | Total length | With fork | mm | 2310 | ||
| 18 | Total length | Without fork | mm | 3080 | ||
| 19 | Total width | mm | 1150 | |||
| 20 | Mast extended height | mm | 4030 | |||
| 21 | Mast lowered height | mm | 1990 | |||
