Product Details:
Payment & Shipping Terms:
|
| Load Capacity: | 1T - 5T | Rated Loading Capacity: | 2000kg |
|---|---|---|---|
| Lift Height: | 3-6.5M | Fork Length: | 1070mm |
| Load Center: | 500mm | Fuel: | Diesel |
| High Light: | 2000 kg Diesel Forklift,1800rpm Diesel Forklift |
||

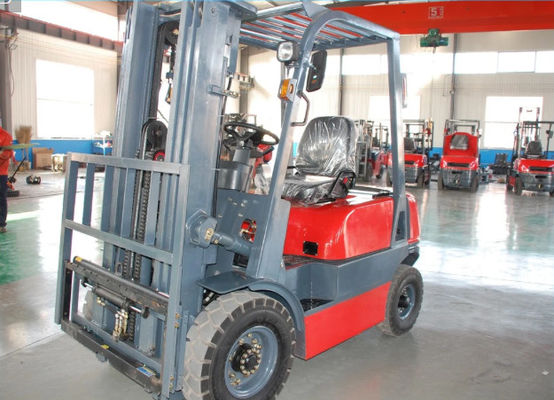

2Ton Diesel Forklift with 2000kg Load Capacity
1,Auto Transmission
2,CST Penumatic tires
3, Engine available
Name: ISUZU C240
Original: Made in Japan
Displacement: 2369c.c.
Rated H.P.: 35KW/2500rmp
Max. torque: 134N.m/1800rpm
| 1 | Characteristics | Fuel type | Diesel | |||
| 2 | Load capacity | kg | 2000 | |||
| 3 | Load center | mm | 500 | |||
| 4 | Lift height | mm | 3000 | |||
| 5 | Full free lift height | mm | 135 | |||
| 6 | Fork dimension | mm | 1070×122×40 | |||
| 7 | Mast tilting angle | Front/Rear | Deg. | 6/12 | ||
| 8 | Min. turning radius | mm | 2280 | |||
| 9 | Min. width of right angle stacking channel | mm | 4110 | |||
| 10 | Min. width of right angle channel | mm | 2010 | |||
| 11 | Groud clearance | mm | 120 | |||
| 12 | Overhead guard height | mm | 2100 | |||
| 13 | Front overhang | mm | 498 | |||
| 14 | Performance | Max. travel speed | Full load | km/h | 18 | |
| 15 | Max. lift speed | Full load | mm/s | 500 | ||
| 16 | Max. traction power | Full load | KN | 17 | ||
