Product Details:
Payment & Shipping Terms:
|
| Load Capacity: | 1T - 5T | Rated Loading Capacity: | 3000kg |
|---|---|---|---|
| Max. Lifting Height: | 3000mm | Fork Length: | 1070mm |
| Load Center: | 500mm | Fuel: | Diesel |
| High Light: | 3000 kg Diesel Forklift,3 Ton Warehouse Diesel Forklift |
||

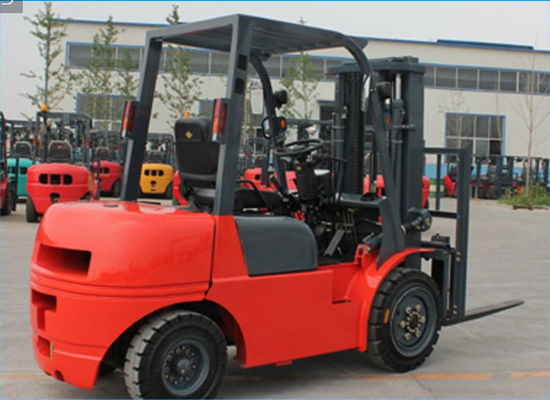

CPC25 2.5Ton Diesel Forklift with Duplex Mast 3.0m Lifting Height
1, Standard configuration
Diesel forklift 3.0Ton
Load capacity: 3000kg
ISUZU C240 diesel engine
Auto Transmission
Load center: 500mm
Lift height: 3-6.5M
CST Penumatic tires
Fork 1070mm
2, Mast available
2 stage from 3.0m to 5.0m
2 stage FFL from 3.0-5..0m
3 stage FFL from 4.5-6.5m
3, Engine available
Name: ISUZU C240
Original: Made in Japan
Displacement: 2369c.c.
Rated H.P.: 35KW/2500rmp
Max. torque: 134N.m/1800rpm
| 1 | Characteristics | Fuel type | Diesel | |||
| 2 | Load capacity | kg | 3000 | |||
| 3 | Load center | mm | 500 | |||
| 4 | Lift height | mm | 3000 | |||
| 5 | Full free lift height | mm | 135 | |||
| 6 | Fork dimension | mm | 1070×125×45 | |||
| 7 | Mast tilting angle | Front/Rear | Deg. | 6/12 | ||
| 8 | Min. turning radius | mm | 2470 | |||
| 9 | Min. width of right angle stacking channel |
mm | 4280 | |||
| 10 | Min. width of right angle channel |
mm | 2120 | |||
| 11 | Groud clearance | mm | 120 | |||
| 12 | Overhead guard height | mm | 2120 | |||
| 13 | Front overhang | mm | 498 | |||
