Product Details:
Payment & Shipping Terms:
|
| Power Souce: | Diesel Engine | Rated Loading Capacity: | 2500kg |
|---|---|---|---|
| Max. Lifting Height: | 3000mm | Fork Length: | 1070mm, |
| Lifting Height: | 3000mm | Rated Load: | 3000Kg |
| High Light: | 3000mm Hydraulic Stacker Trucks,2500 kg Diesel Forklift Truck |
||

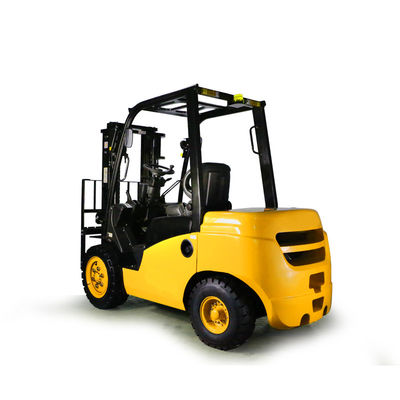

2.5T Diesel Forklift Truck Hydraulic Stacker Trucks
1,Diesel forklift FD25,with Japan TOYOTA Style & technology,automatic transmission
2,Capacity: 2500kg
3,XINCHANG C490BPG engine
4,2stage mast with lifting height 3000mm,Shimadzu pump & valve,NOKsealing,NSK bearing, 2rd pipes and valves
5,fork: 1070mm,
6,pneumatic tyre.
7.Wide view mast
8,Standard mirrors and lights
9,Stable operation and low noise
|
Performance
|
Rated load
|
2500kg
|
|
|
Overall weight
|
3720kg
|
||
|
fork length
|
1070mm
|
||
|
Maximum tractive force
|
45KN
|
||
|
Maximum breakout force
|
≥55KN
|
||
|
Maximum grade ability
|
30℃
|
||
|
Maximum lifting height
|
3000mm
|
||
|
Maximum dump reach
|
900m
|
||
|
Overall dimension (L*W*H)
|
5720×1900×2600mm
|
||
|
Minimum turning radius
|
4290mm
|
||
|
|
mast
|
duplex mast
|
|
|
Engine
|
Model
|
XINCHANG C490BPG engine | |
|
Type
|
In-line,arrangement,water cooling, four-stroke
|
||
|
No. of cylinder-bore/stroke
|
4-90×105mm
|
||
|
Rated power
|
60kw--2600r/min
|
||
|
Maximum torque
|
255N.m
|
||
|
Min fuel-consume ratio
|
≤225g/kw.h
|
||
