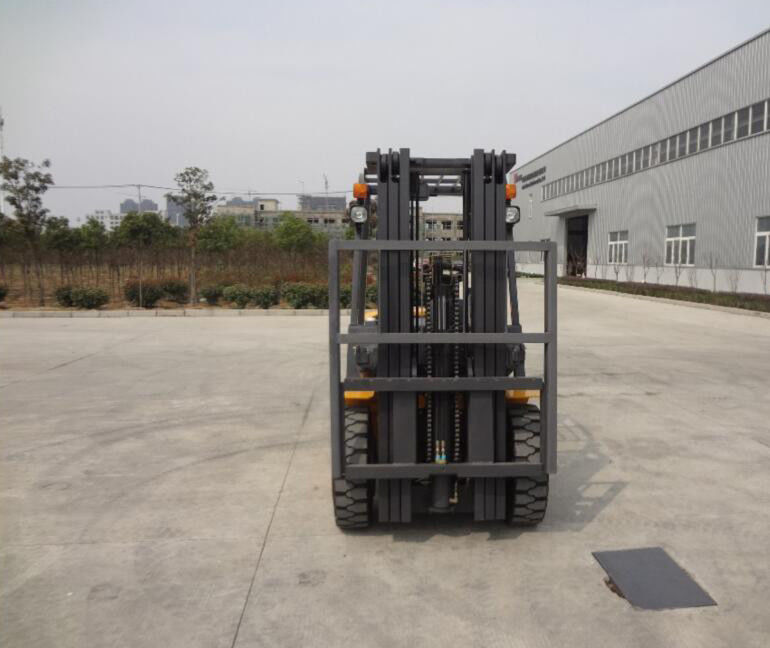

Japanese Engine Diesel Forklifts Road Construction Machinery With Automatic Transmission

Good Quality Japanese Engine Diesel Forklifts with Automatic Transmission

A reliable mast :

• Emphasis on the inherent quality of the mast has provided operatoe a reliable security. Wide view mast makes vision more clearly.
• we adopted the German mast channel which has the world-class quality.
• The cross-section of mast channel has been increased and the structure become more strong.

New type of adjusting mechanism of the steering:

• The new type steering wheel dual threaded adjustment mechanism with patented technology has improved the operator comfort and adjustment reliability

New drive and control system :

• Adopt the international electric actuators and makes the truck steering more stable,and output power stronger.
• New electronic blanker improves the comfort and safety of the operation.

  Model		20		25		30		35
  Load capacity kg		2000		2500		3000		3500
  Load center mm		500		500		500		500
  Power type		Diesel
  Max.lifting speeds(with load)mm/s		400		400		400		390
  Max.Driving speeds(with without load)km/h		17/19		17/19		18/20		17/19
  Max.Towing speeds(with/without load)kN		14/9		15/10		15.5/10.5		16/11
  Gradeability(with/without load)%		15/20		15/20		15/20		15/20
  H1 Lifting height mm		3000		4000		3000		3000
  Tilting angles(forward-backward) .		6/12		6/12		6/12		6/12
  Min. turning radius mm		2400		2425		2980		2575
  Min. right angle aisle width mm		2090		2115		2750		2180
  Min. under-clearance mm		110		110		125		125
  Dimensions	A Overall length (inincluding fork) mm	3485		3510		3810		3835
  	B Overall width mm	1160		1160		2100		1230
  	H Overall height(mast lowered) mm	2190		2550		2230		2230
  	H2 Overall height(mast extend) mm	4080		4080		4270		4270

•
