160KW Road Construction Machinery 200M Efficient Hydraulic System

China 160KW Road Construction Machinery 200M Efficient Hydraulic System supplier
160KW Road Construction Machinery 200M Efficient Hydraulic System supplier 160KW Road Construction Machinery 200M Efficient Hydraulic System supplier 160KW Road Construction Machinery 200M Efficient Hydraulic System supplier

Large Image :  160KW Road Construction Machinery 200M Efficient Hydraulic System

Product Details:

Place of Origin: China
Brand Name: Bilon
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: 1-10pcs
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Set/Sets per Month
Contact Now
Detailed Product Description
Weight: 15400kg Dimension(L*W*H): 9100*2600*3400MM
Rated Power/Rated Speed: 160KW/2200(r/min) Engine: 6CTA8.3
Tires: 6 Wheels Max. Torque: 908N.m

160KW Road Construction Equipment China Motor Grader 200M

• Sing-handle electro-hydraulic controlled power-shift T/M, 6forward &3reverse shifts makes operation easy and convenient
• Hydraulic lock, auto lock/unlock NO-SPIN differential ensures stability and powerful traction
• Ideal axle load allocation provides excellent stability while cutting hard surface
• Serviceable, efficient hydraulic system enables every part to be fully use
• Box-typed frame and advanced T/M enable it to complete heavy-duty work

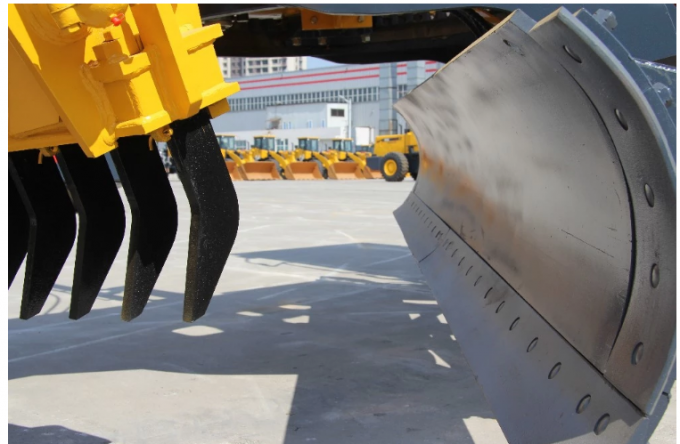

• A wide working range is accomplished through flexible blade suspension system and articulated frame

SPECIFICATIONS FOR 215HP CHINA MOTOR GRADE 200M
Overall Dimension
Length
mm
9100
Width
mm
2600
Height(To the top of the cab)
mm
3400
Wheel base
mm
6100
Tread
mm
2120
Main Technical Specification
Operating weight
kg
15400
Blade length
mm
3658
Blade height
mm
545
Blade width
mm
16
Max lifting height

450
Max grading depth

535
Diesel engine
Model

6CTA8.3
Rated output
kW
160
Transmission System
Torque Converter Model

WG180
Transmission case

WG180
Gear shift position

6 Forward and 3 Reverse
Tire
Size of tire

17.5-25-12PR(standard)


160KW Road Construction Machinery 200M Efficient Hydraulic System160KW Road Construction Machinery 200M Efficient Hydraulic System
