Product Details:
Payment & Shipping Terms:
|
Weight: | 14500kg | Dimension(L*W*H): | 8630mm*2600mm*3370mm |
---|---|---|---|
Rated Power/Rated Speed: | 132 KW/2200(r/min) | Engine: | 6BT5.9-C180 |
Wheel Base: | 6100mm | Max Grading Depth: | 535mm |
Highlight: | road construction vehicles,construction paver machine |

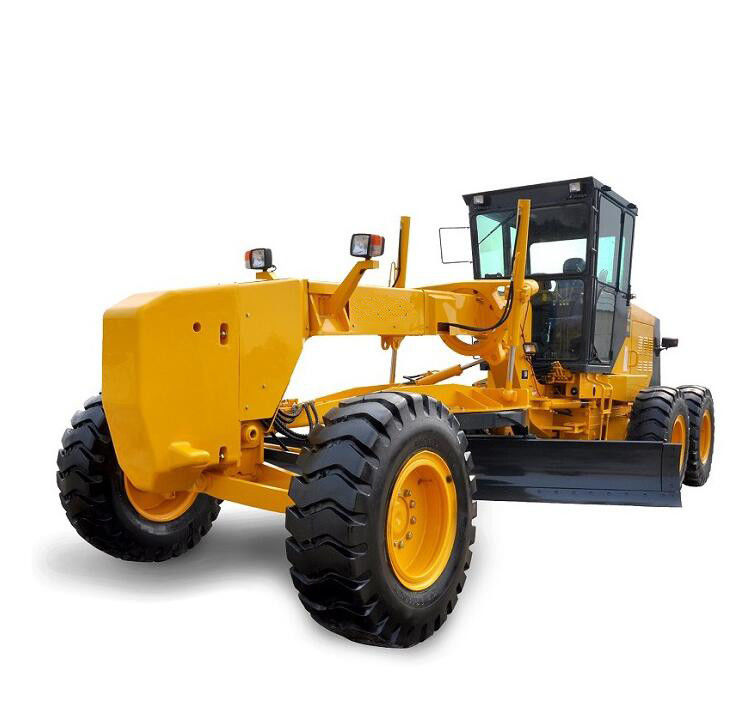

SPECIFICATIONS FOR 180hp MOTOR GRADER | |||
Overall Dimension | Length*Width*Height | mm | 8300*2600*3370 |
Wheel base | mm | 6100 | |
Tread | mm | 2120 | |
Operating weight | kg | 14500 | |
Main Specification | Blade length*height*width | mm | 3658*545*16 |
Max lifting height | mm | 450 | |
Max grading depth | mm | 535 | |
Min. turning radius | mm | 7300 | |
Pivot angle frame | o | +26 | |
Max turning angle(front wheel) | o | ±49 | |
Oscillating angle of front axle | o | ±16 | |
Front axle center ground clearance | mm | 610 | |
Traveling speed(6 forward) | km/h | 0-49.2 | |
Traveling speed(3 reverse) | km/h | 30 | |
Engine | Model | Cummins 6BTA5.9-C180 | |
Type | Direct injection. Turbocharged. Water cooling | ||
Rated output | kW | 132 | |
Total exhaust of cylinder | L | 5.9 | |
Rated speed | r/min | 2200 | |
Max. Torque | 750(N.m) at 1300r/min | ||
Transmission System | Model | WG180 (ZF technology)Torque Converter and Transmission case |
