| Mixing Power: | 55 KW | Charging Capacity: | 2300 L |
|---|---|---|---|
| Reclaiming Capacity: | 1500 L | Speed Of Mixing Drum: | 13r/min |
| Weight: | 4500 Kg | Outline Dimension: | 6400x2550x2450 Mm |
| High Light: | self loading concrete mixer,mobile concrete mixer |
||

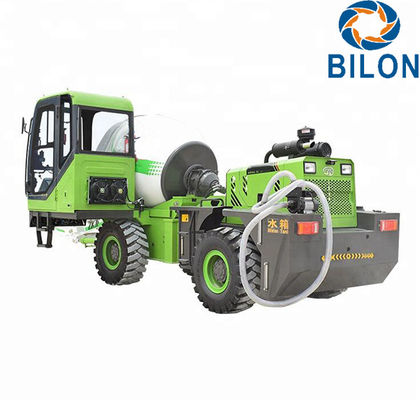

New Design 1.5 CBM Self Loading Concrete Mixer Machine
BL3500R Self Loading Concrete Mixer is a kind of multifunctional machinery which combines the transit mixer, concrete mixer and wheel loader together. It can automatically load, measure, mix and discharge concrete mixture. Equipped with powerful YUNNEI ,55 kW Diesel engine and 4 wheel drive plus 2 wheel steering, the self loading concrete mixer is just like a truck and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. Thanks to its Bottom Hydraulic Lifting Mechanism, the raw material inside the mixing drum could be discharged more thoroughly by drum reversing operation.
The drum slewing function is optional upon request.
|
Specifications for BL1500 Self Loading Concrete Mixer
|
||
|
Mixing Drum
Mixing Drum
|
Mixing Volume
|
1500 L
|
|
Geometric Volume
|
2300 L
|
|
|
Concrete Output
|
1500 L/ batch , 4 Batches/ hr
|
|
|
Inclination Angle
|
16°
|
|
|
Max. Slewing Angle
|
0°
|
|
|
Rotating Speed
|
10~21 rpm
|
|
|
Body /Bottom Thickness
|
4 mm/6 mm(Q345B)
|
|
|
Overall Size
|
Φ1350x 1920
|
|
|
Discharge Chute
|
Max. Slewing Angle
|
180°
|
|
Tilting Method
|
Mechanically
|
|
|
Length
|
450mm +1200 mm (2 Sections)
|
|
|
Diesel Engine
Engine
|
Brand
|
YUNNEI ( Cummins Optional)
|
|
Model
|
YN27GBZ
|
|
|
Rated Power/Speed
|
75 HP /2400 rpm
|
|
|
Max.Torque/ Speed
|
237 N.m/1800 rpm
|
|
|
Bore x Stroke
|
90 mm x105 mm
|
|
|
Displacement
|
2.7 L
|
|
|
Type
|
4-Cylinder,In-line,
Turbo Charged, Water-cooled
|
|
|
Emission Standard
|
Euro II
|
|
|
Hydraulic
Driving System
Hydraulic System
|
Reducer Model
|
KY07-2-0
|
|
Hydraulic Pump Displacement
|
50/40 mL/r
|
|
|
Hydraulic Motor Displacement
|
160 mL/ r
|
|
|
Water Supply System
Water Supply System
|
Water Tank Volume
|
2 x 200 L
|
|
Water Supply Mode
|
Self-contained,
Electric water pump
|
|
|
Chassis
Chassis
|
Structure
|
Articulated Structure
|
|
Drive Type
|
4 X 4
|
|
|
Transmission
|
2 Forward +2 Reverse Shift (Low+ High Speed)
|
|
|
Torque converter
|
YJ265
|
|
|
Gearbox Mode
|
Counter Shaft, Power-shift
|
|
|
Wheelbase
|
2300 mm
|
|
|
Tread
|
1550 mm
|
|
|
Loading Shovel Capacity
|
500 L
|
|
|
Brake Type
|
Air Brake
|
|
|
Tyre Size
|
20.5/70-16
|
|
|
Vehicle
|
Drum and Shovel Control
|
By 2 Sets of Joystick
|
|
Driver’s Cab
|
Air-conditioner Inside
|
|
|
Max. Drive Speed
|
30 km/h
|
|
|
Grade Ability
|
30 %
|
|
|
Mini Turning Radius
|
4750 mm
|
|
|
Max. Payload
|
3,600 kg
|
|
|
Operating Weight
|
4,500 kg
|
|
|
Overall Size
|
6400 x 2550x 2450 mm
|
|
