Product Details:
Payment & Shipping Terms:
|
| Reclaiming Capacity: | 4000 L | Speed Of Mixing Drum: | 13r/min |
|---|---|---|---|
| Working Cycle Period: | 10-15min | Productivity: | 16 M3/h |
| Weight: | 9200 Kg | Outline Dimension: | 7500 X 2850x3600mm |
| High Light: | self loading concrete mixer,mobile concrete mixer |
||

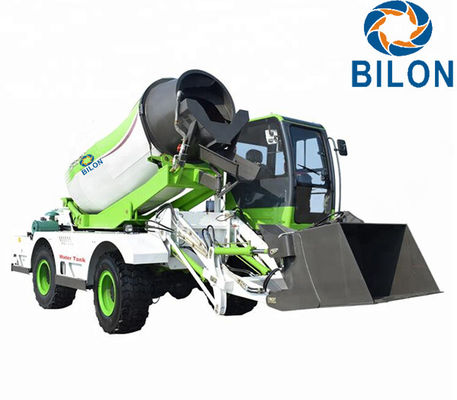

High Efficient 4 CBM Mini Concrete Mixer Prices
2) The Integrated Structure Chassis and Four Wheel Steering
3) The mixing unit could slew hydraulically up to 290°
4) Centralized Lubricating System for Easy Maintenance
5) Closed Circuit Hydraulic Rotation System
6) Spacious Driver's Cab with Shovel Loader Weigher, A/C and Fire Extinguisher inside
|
Mixing Drum
|
Mixing Volume
|
4000 L
|
|
Geometric Volume
|
6100 L
|
|
|
Concrete Output
|
4000 L/ batch , 4 Batches/ hr
|
|
|
Inclination Angle
|
16°
|
|
|
Max. Slewing Angle
|
290°
|
|
|
Rotating Speed
|
0~21 rpm
|
|
|
Body /Bottom Thickness
|
5 mm/8 mm(Q345B)
|
|
|
Overall Size
|
Φ1920x 3206mm
|
|
|
Chute
|
Max. Slewing Angle
|
180°
|
|
Tilting Method
|
Mechanically
|
|
|
Length
|
650mm +1500 mm (2 Sections)
|
|
|
Engine
|
Brand
|
YUCHAI ( Cummins Optional)
|
|
Model
|
YCD4J22G
|
|
|
Rated Power/Speed
|
116 HP /2400 rpm
|
|
|
Max.Torque/ Speed
|
390 N.m/2800 rpm
|
|
|
Bore x Stroke
|
105 mm x125 mm
|
|
|
Displacement
|
4.33 L
|
|
|
Type
|
4-Cylinder,In-line,
Turbo Charged, Water-cooled
|
|
|
Emission Standard
|
Euro II
|
|
|
Hydraulic System
|
Reducer Model
|
HJ80-43
|
|
Hydraulic Pump Displacement
|
80/40 mL/r
|
|
|
Hydraulic Motor Displacement
|
63 cm3/rev
|
|
|
Water Supply System
|
Water Tank Volume
|
2 x 330 L
|
|
Water Supply Mode
|
Self-contained, Hydraulic
Driven water pump
|
|
|
Chassis
|
Structure
|
Integrated Structure
|
|
Drive Type
|
4 X 4X4
|
|
|
Transmission
|
2 Forward +2 Reverse Shift (Low+ High Speed)
|
|
|
Torque converter
|
YJ280 ( Split Type)
|
|
|
Gearbox Mode
|
Counter Shaft, Power-shift
|
|
|
Wheelbase
|
2400 mm
|
|
|
Tread
|
1820 mm
|
|
|
Loading Shovel Capacity
|
600 L
|
|
|
Brake Type
|
Air Brake
|
|
|
Tyre Size
|
16/70-20
|
|
|
Vehicle
|
Drum and Shovel Control
|
By Joystick
|
|
Driver's Cab
|
Air-conditioner Inside
|
|
|
Max. Drive Speed
|
30 km/h
|
|
|
Grade Ability
|
30 %
|
|
|
Mini Turning Radius
|
4000 mm
|
|
|
Max. Payload
|
9,500 kg
|
|
|
Operating Weight
|
9,200 kg
|
|
|
Overall Size
|
7500 x 2850x 3600 mm
|
