Product Details:
Payment & Shipping Terms:
|
| Mixing Power: | 85 KW | Motor Power: | 2.2kw |
|---|---|---|---|
| Charging Capacity: | 5300 L | Speed Of Mixing Drum: | 20r/min |
| Weight: | 8100 Kg | Outline Dimension: | 7520 X 2600x3270mm |
| High Light: | self loading concrete mixer,mobile concrete mixer |
||

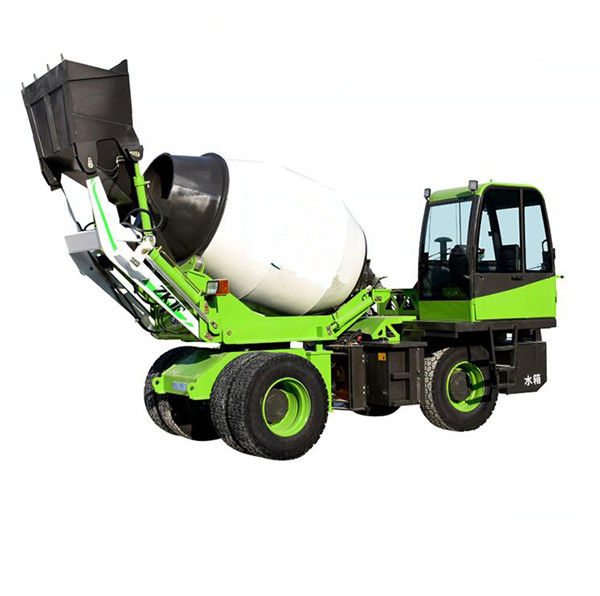

3.5 M3 Self Loading Concrete Mixer Truck Price
Self Loading Concrete Mixer is a kind of multifunctional machinery which combines the transit mixer, concrete mixer and wheel loader together. It can automatically load, measure, mix and discharge concrete mixture. Equipped with powerful YUCHAI ,85 kW Diesel engine and 4 wheel drive plus 2 wheel steering, the self loading concrete mixer is just like a truck and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The mixing Drum could slew hydraulically up to ±90° (namely, turning left to 90° and turning right to 90°)for high discharge over 1.5 m in the front side of the vehicle.
|
Mixing Drum
|
Mixing Volume
|
3500 L
|
|
Geometric Volume
|
5300 L
|
|
|
Concrete Output
|
3500 L/ batch , 4 Batches/ hr
|
|
|
Inclination Angle
|
16°
|
|
|
Max. Slewing Angle
|
±90°
|
|
|
Rotating Speed
|
0~21 rpm
|
|
|
Body /Bottom Thickness
|
5 mm/8 mm(Q345B)
|
|
|
Overall Size
|
Φ1700x 3210 mm
|
|
|
Chute
|
Max. Slewing Angle
|
180°
|
|
Tilting Method
|
Mechanically
|
|
|
Length
|
650mm +1000 mm (2 Sections)
|
|
|
Engine
|
Brand
|
YUCHAI ( Cummins Optional)
|
|
Model
|
YCD4J22G
|
|
|
Rated Power/Speed
|
116 HP /2400 rpm
|
|
|
Max.Torque/ Speed
|
390 N.m/2800 rpm
|
|
|
Bore x Stroke
|
105 mm x125 mm
|
|
|
Displacement
|
4.33 L
|
|
|
Type
|
4-Cylinder,In-line,
Turbo Charged, Water-cooled
|
|
|
Emission Standard
|
Euro II
|
|
|
Hydraulic System
|
Reducer Model
|
HJ80-43
|
|
Hydraulic Pump Displacement
|
80/40 mL/r
|
|
|
Hydraulic Motor Displacement
|
56 cm3/rev
|
|
|
Water Supply System
|
Water Tank Volume
|
2 x 300 L
|
|
Water Supply Mode
|
Self-contained, Hydraulic
Driven water pump
|
|
|
Chassis
|
Structure
|
Integrated Structure
|
|
Drive Type
|
4 X 4X2
|
|
|
Transmission
|
2 Forward +2 Reverse Shift (Low+ High Speed)
|
|
|
Torque converter
|
YJ280 ( Split Type)
|
|
|
Gearbox Mode
|
Counter Shaft, Power-shift
|
|
|
Wheelbase
|
2687 mm
|
|
|
Tread
|
1950 mm
|
|
|
Loading Shovel Capacity
|
600 L
|
|
|
Brake Type
|
Air Brake
|
|
|
Tyre Size
|
16/70-22.5
|
|
|
Vehicle
|
Drum and Shovel Control
|
By Joystick
|
|
Driver's Cab
|
Air-conditioner Inside
|
|
|
Max. Drive Speed
|
30 km/h
|
|
|
Grade Ability
|
40 %
|
|
|
Mini Turning Radius
|
5300 mm
|
|
|
Max. Payload
|
8,400 kg
|
|
|
Operating Weight
|
8,100 kg
|
|
|
Overall Size
|
7520 x 2600x 3270 mm
|
