Product Details:
Payment & Shipping Terms:
|
| Rated Load: | 2000kg | Dimension(Long * Breadth * High): | 7200*2100*2880mm |
|---|---|---|---|
| Dumping Height:: | 3450mm | Operating Weight: | 2000Kg |
| Power: | 76KW | Gearbox: | 265 |
| High Light: | road construction vehicles,construction paver machine |
||

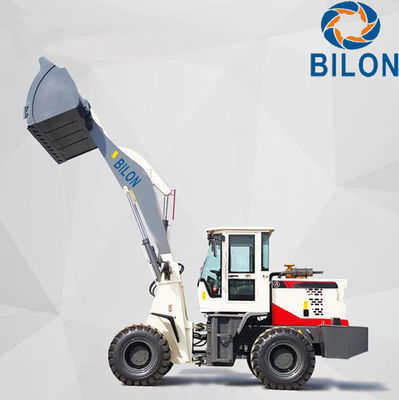

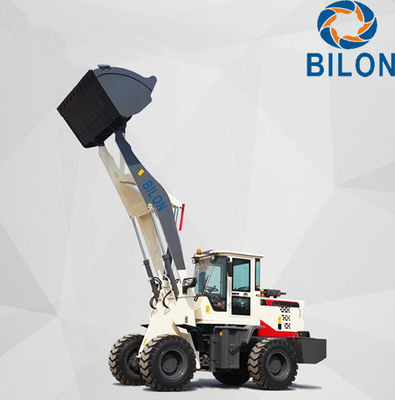

76KW 2 Ton Small Wheel Loader With Bigger Bucket For Loading Grain or Cotton
1.Using direct injection diesel engine as power, with easy startup and low oil consumption
2.Using special drive axle, with strong ability to overcome obstacle
3.Using the central articulated frame and load-sensing hydraulic steering gear, with small turning radius and flexible turning, which applies to the operation in narrow space
4.This machine uses hydraulic operation, with simple structure, convenient operation, good performance and reliable quality
5.Widely applying to the construction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.
6.Hydraulic mechanical transmission,can make full use of engine power
7.Using four -wheel -drive,low wide-based off-road tires
8.A single pipeline hydraulic brake system up for wheel brake shoe
Performance | Rated load | 2000kg | |
Overall weight | 5800kg | ||
Rated bucket capacity | 1.3m3 | ||
Maximum tractive force | 61KN | ||
Maximum breakout force | ≥72KN | ||
Maximum grade ability | 30℃ | ||
Maximum dump height | 4500mm | ||
Maximum dump reach | 1200m | ||
Overall dimension (L*W*H) | 5900×2100×2880mm | ||
Minimum turning radius | 3450mm | ||
Engine | Model | YN 4102 turbo engine | |
Type | In-line,arrangement,water cooling, four-stroke | ||
No. of cylinder-bore/stroke | 4-102×115mm | ||
Rated power | 76kw--2400r/min | ||
Maximum torque | 500N.m | ||
Min fuel-consume ratio | ≤225g/kw.h | ||
Transmission system | Torque converter | 265 | |
Gearbox mode | Power shift normally engaged straight gear | ||
Gear shift | 2 forward shift 2reverse shift | ||
Maximum speed | 30km/h | ||
