Product Details:
Payment & Shipping Terms:
|
Bucket Capacity: | 1m3 | Operating Weight: | 21700 |
---|---|---|---|
Engine Model: | CC-6BG1TRP | Rated Power: | 128kw |
Displacement: | 6.494 | Original: | China |
Highlight: | 21T Crawler Excavator,1M3 Bucket Crawler Excavator,128kw Crawler Excavator |

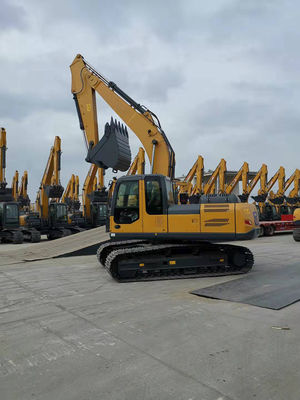

China Manufacturer 21T Crawler Excavator for Construction with 1 m³ Bucket Capacity
1,This hydraulic excavator has more power, lower oil consumption and stronger operating performance
2,It can be widely used for irrigation and water conservancy, river dredging, municipal construction and small mine construction.
3,It can meet different operations such as digging, breaking and dismantling, and its working condition adaptability is further strengthened.
Model | Unit | ||
Operating weight | Kg | 21700 | |
Bucket capacity | m³ | 1.0 | |
Engine | Model | / | CC-6BG1TRP |
Direct injection | / | √ | |
Four strokes | / | √ | |
Water cooling | / | √ | |
Turbo-charging | / | √ | |
Air to air intercooler | / | √ | |
No. of cylinders | / | 6 | |
Rated power/speed | kw/rpm | 128.5/2100 | |
Maximum torque/speed | N.m | 637.9/1800 | |
Displacement | L | 6.494 | |
Main performance |
Travel speed(H/L) | km/h | 5.5/3.3 |
Swing speed | r/min | 13.2 | |
Gradeability | ° | ≤35 | |
Ground pressure | kPa | 49.1 | |
Bucket digging force | kN | 149 | |
Arm digging force | kN | 111 | |
Maximum tractive force | kN | 184 | |
Hydraulic system |
Main pump | / | Two piston pump |
Rated flow of main pump | L/min | 2×231 | |
Main safety valve pressure | MPa | 34.3/37 | |
Travel system pressure | MPa | 34.3 | |
Swing system pressure | MPa | 28 | |
Pilot system pressure | MPa | 3.9 |
