| Moving Type: | Wheel Excavator | Maximum Digging Height: | 5482 Mm |
|---|---|---|---|
| Max Digging Radius: | 8310 Mm | Engine Model: | Yuchai Or Cumins |
| Engine Power: | 92kw/2200rpm | Machine Weight: | 15000Kg |
| Highlight: | cat mini excavator,mini excavator machine |
||

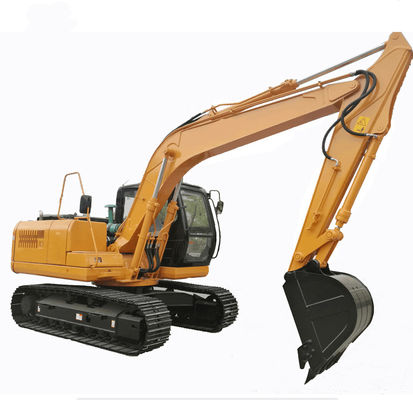

Cheap 15Ton Hydraulic Crawler Excavator Price for sale
makes the leap to our powerful mid-range of excavators.
It offers an imported Cumminss (QSB4.5-C155) engine that provides a reliable and powerful plant. Loongsheen's body design makes maintenance convenient with easy-access points.LX150-8 model features imported hydraulic parts, negative flow and electronic controls. It is a high-efficiency machine due to its state-of-the-art functions of boom confluence and diffluence, swing priority and flux regeneration.
| Main Dimension | |
| Shipping Length | 7760 mm |
| Shipping Height | 2920 mm |
| Steering Width | 2500 mm |
| Track Shoe Width | 500 mm |
| Radius, Swing Center to Rear End | 2250 mm |
| Track Shoe Length (Wheel Base) | 3470 (2750) mm |
| Chassis Width | 2460 mm |
| Min Ground Height | 420 mm |
| Working range | |
| Max. Digging Height | 8643 mm |
| Max. Dumping Height | 6194 mm |
| Max. Digging Depth | 5482 mm |
| Max. Digging Radius | 8310 mm |
| Performance Parameters | |
| Engine Type | Cummins QSB4.5-C155 |
| Power | 116/2000 kw/rpm |
| Engine Type | Yuchai YC4A125Z-T20 |
| Power | 92/2200 kw/rpm |
| Hydraulic System Pressure | 34.3 mpa |
| Hydraulic System Flow | 126 x 2 L/Min |
| Bucket Volume | 0.6 m³ |
| Bucket Digging Force | 85 kn |
| Arm Digging Force | 53 kn |
| Gradeability | 70 % |
| Rotation Speed | 13-14 r/min |
| Travel Speed | 3-4 km/h |
| Approximate Weight | 15000 kg |
