Product Details:
Payment & Shipping Terms:
|
| Operating Weight: | 13ton | Bucket Capacity: | 0.55m3 |
|---|---|---|---|
| Maximum Digging Height: | 6060mm | Maximum Digging Depth: | 8495mm |
| Max Digging Radius: | 2445mm | Rated Speed: | 5.5km/h |
| High Light: | cat mini excavator,mini excavator machine |
||

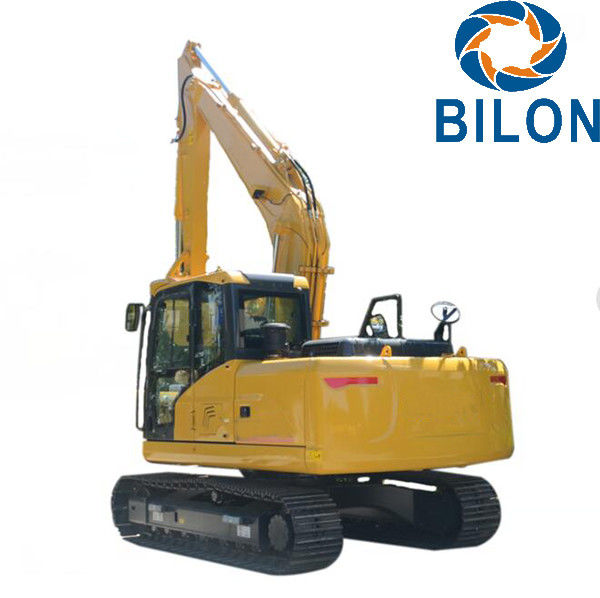

2018 New China 13TON Digging Machine for sale
Cummins QSF3.8 T engines, electronically controlled high pressure common rail injection system, energy conservation, environmental protection, low noise, strong power, China Ⅲ emission standards; Fuel system adopts three-level integration diesel oil filter, air intake system using radial seal air filter, the standard air prefilter, effectively prolong the service life of the engine; Tied for radiator, aluminum radiator area is large, the cooling performance is good
| The engine cooling system | cool -watering |
| The type | QSF3.8T |
| cylinders *diameter *trip(mm) |
4*102*115 |
| The displacement(L) | 3.76 |
| Rated power(kw/rpm) | 86/2200 |
| The bucket | |
| The capacity of bucket(m³) | 0.55 |
| The width of bucket(mm) | 990 |
| Digging force | |
| Arm digging force(kn) | 70 |
| Bucket digging force(kn) | 97 |
| The walking system | |
| The Walking motor | The axial variable |
| The number of the segments | 2*44 |
| The walking speed(km/h) | 3.25/5.2 |
| The traction(KN) | 135 |
| The climbility ability | 70%(35°) |
| The track roller number | 2*7 |
| Drag chain number | 2*1 |
| The hydraulic system | |
| The hydraulic types | Variable double column |
| The rated working flow | 2*130 |
| Walking circuit pressure(Mpa) | 35 |
| Rotary loop pressure(Mpa) | 27 |
| Pressure control loop(Mpa) | 3.9 |
