Product Details:
Payment & Shipping Terms:
|
| Moving Type: | Crawler Excavator | Operating Weight: | 3200 Kg |
|---|---|---|---|
| Bucket Capacity: | 0.18 M3 | Maximum Digging Depth: | 2500 Mm |
| Max Digging Radius: | 4600mm | Overall Dimensions (mm): | 4600*1650*2260 |
| Highlight: | small excavator machine,cat mini excavator |
||

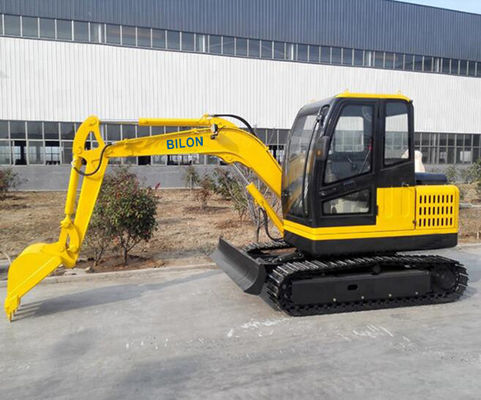

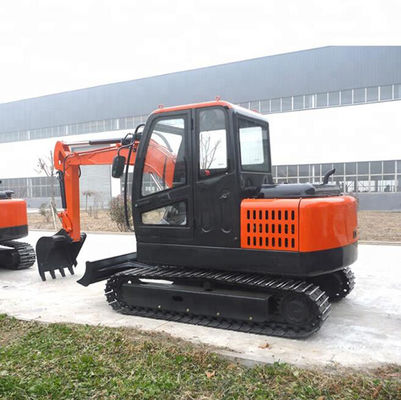

China 3 Ton Small Excavator With CE Certificate
1,3 ton excavator equipped with China Changchai ZN490 engine with rated power 34KW which is more powerful.Japan brand 3TNV88 engine can be optional.
2,Hydraulic Joystick pilot control system makes the operation more smoothly.
3,Boom side shift function makes it can work in more narrow place and the digging radius is bigger.
4,Safety lock makes it more safe to operator and other people.
5, 3 ton excavator equipped with hydraulic auxiliary line for attachment,can be fitted with various attachent,like auger,hammer,wood grapple,thumb bucket and so on.
| Bucket Capacity | 0.18 M3 |
| Swing Speed | 10 r/min |
| Travel Speed | 3.1/5.6 km/h |
| Overall Weight | 3000 Kg |
| Grade Ability | 26° |
| Max Bucket Digging Force | 24 kN |
| Arm Digging Force | 13.6 kN |
| Engine Model | Changchai ZN490 / Japan 3TNV88 |
| Rated Power | 34/2400 KW/rpm / 19.1/2200 KW/rpm |
| Hydraulic System Pressure | 16 Mpa |
| Hydraulic System Flow | 28 L/min |
| Main Dimensions | |
| Overall Length*Width*Height(L*W*H) | 4600*1650*2260mm |
| Track Width | 300mm |
| Min Ground Clerance | 240mm |
| Track Gauge | 1670mm |
| Tail Swing Radius | 1250mm |
