Product Details:
Payment & Shipping Terms:
|
| Certification: | CE | Rated Load: | 720kg-1100kgs |
|---|---|---|---|
| Bucket Capacity: | 0.36-0.52 Cbm | Type: | Skid Steer Loader |
| Rated Power: | 25-92 KW | Warranty: | 1year |
| High Light: | Fully Hydraulic Skid Steer Loader,Skid Steer Loader With Attachments |
||

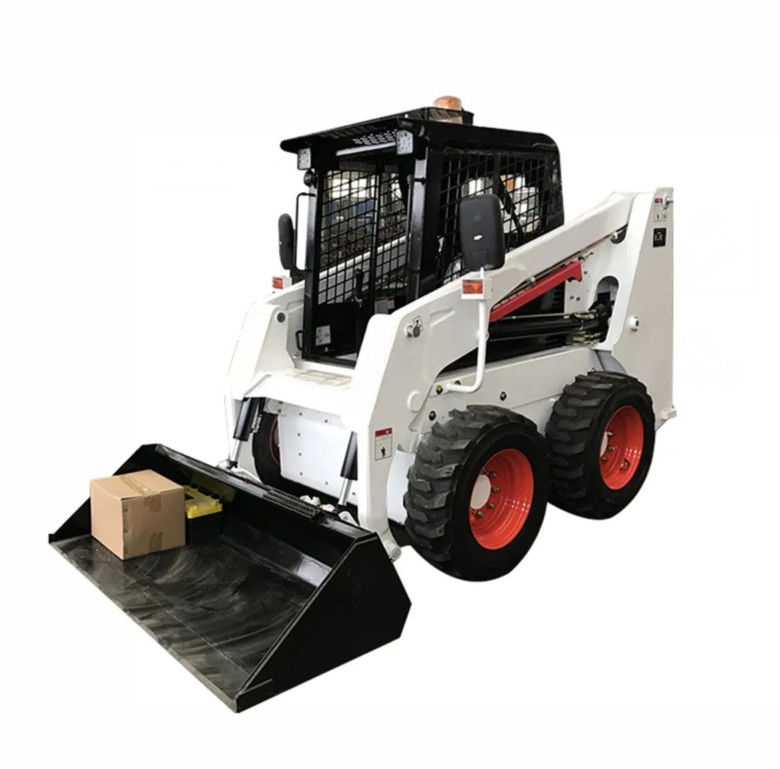

Ce Certificated Fully Hydraulic Skid Steer Loader Mini Loader Skid Steer With Attachments
1,Skid steer loader is one of the most popular mini construction machinery in the world.
2,Relying on its flexible steer, compact body and replaceable mulitifunctional tools,
3,it can finish all kinds of comprehensive construction demand easily.
4,The apperance, heightlifting, weightlifting and driving comfort are all the top-notch loader in the world.
5.Always supply the high quality machine and Variously styles can meet the customers’ all kinds of request.
|
Model
|
BL50
|
BL65
|
BL75
|
BL85
|
|
Rated operating capacity
|
720kg
|
900kg
|
1000kg
|
1100kg
|
|
Rated bucket capacity
|
0.36M3
|
0.41M3
|
0.52M3
|
0.52M3
|
|
Weight
|
2835kg
|
3200kg
|
3300kg
|
3900kg
|
|
Max driving speed
|
12km/h
|
12km/h
|
12km/h
|
12km/h
|
|
Max traction
|
≥25.4KN
|
≥28.2KN
|
≥30KN
|
≥32KN
|
|
Max grade Ability
|
25°
|
25°
|
25°
|
25°
|
|
Max excavation ability
|
≥18.4KN
|
≥20KN
|
≥20KN
|
≥20KN
|
|
Lifting time of arm
|
≤5S
|
≤5S
|
≤5S
|
≤5S
|
|
Total time of shovel,lift and tipping
|
≤10.5S
|
≤10.5S
|
≤10.5S
|
≤10.5S
|
|
Pressure of hydraulic system
|
21MPa
|
21MPa
|
21MPa
|
21MPa
|
|
Tyre inflation pressure
|
0.41-0.45MPa
|
0.41-0.45MPa
|
0.41-0.45MPa
|
0.41-0.45MPa
|
|
System voltage
|
12V
|
12V
|
12V
|
12V
|
|
Fuel(diesel) filling capacity
|
88L
|
88L
|
88L
|
88L
|
|
Lube filling capacity
|
10L
|
10L
|
10L
|
10L
|
|
Hydraulic oil filling capacity
|
70L
|
70L
|
70L
|
70L
|
