6 Ton 966 3.5 M3 Bucket Capacity Front End Loader With 199kw WEICHAI Engine

6 Ton 966 3.5 M3 Bucket Capacity Front End Loader With 199kw WEICHAI Engine
6 Ton 966 3.5 M3 Bucket Capacity Front End Loader With 199kw WEICHAI Engine 6 Ton 966 3.5 M3 Bucket Capacity Front End Loader With 199kw WEICHAI Engine 6 Ton 966 3.5 M3 Bucket Capacity Front End Loader With 199kw WEICHAI Engine 6 Ton 966 3.5 M3 Bucket Capacity Front End Loader With 199kw WEICHAI Engine

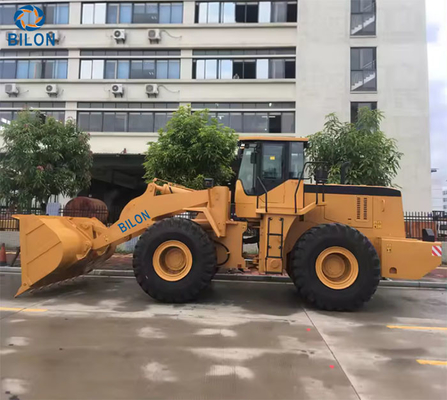

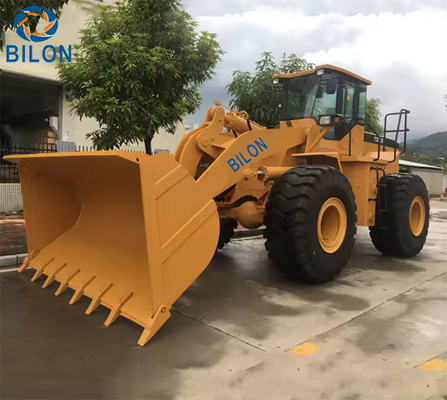

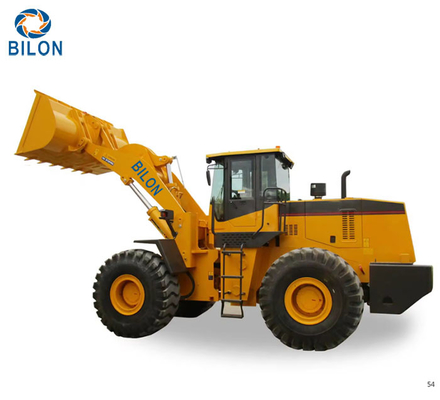

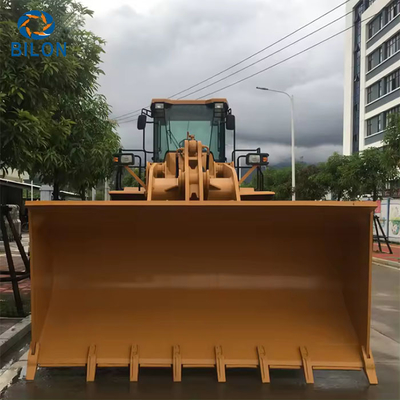

Large Image :  6 Ton 966 3.5 M3 Bucket Capacity Front End Loader With 199kw WEICHAI Engine

Product Details:
Place of Origin: China
Brand Name: Bilon
Model Number: 923
Contact Now
Detailed Product Description
Operating Weight: 19.5T Rated Load: 6000kg
Rated Engine Power: 199kw Bucket Capacity: 3.5m3
Engine Model: WEICHAI WD10G270E201 Max.torque: 920N.m
Tire Type: 26.5-25 Fuel Tank: 230L
Highlight:

199kw Front End Loader

,

3.5 M3 Bucket Front End Loader

6 Ton 3.5 m3 Bucket Capacity Front End Loader with 199kw WEICHAI Engine

Product Description:

The Wheel Loader Machine is an indispensable piece of heavy machinery in the construction, agriculture, and mining industries. Known also as a front end loader or bucket loader, this machine is designed for efficiency and productivity, making it a vital asset to any operation. This particular model, a robust big loader, is engineered to meet the demands of rigorous work environments, ensuring that it can handle a variety of tasks with ease and precision



High Efficiency


1. Famous and powerful Weichai engine with global warranty and parts service provides strong power, energy conservation and environmental protection. Import engine is optional.

2. Confluence of double pumps device promotes rational use of engine power and reduces energy consumption effectively.

3. Planetary transmission with multiple unique technologies can feature high reliability and strong adaptation to heavy load.

4. Using enhanced driving axles with strong traffic ability which can handle heavy-duty loading.



966 6 ton wheel loader specification
Operating weight
19.5T
Bucket capacity
3.5m3
Rated load
6000kg
Engine model
WEICHAI WD10G270E201
Rated engine power
199kw
Rated rotate speed
2200r/mim
Max.torque
920N.m
Max.torque
920N.m
Max.traction force
>=185kN
Grade ability
28°
Driving speed
>=200kN
Overall length
8380mm
Forward I
0--8.5km/h
Overall width
3100mm
Forward II
0--16.5km/h
Bucket width
3170mm
Forward III
0--25km/h
Overall Height
3560mm
Forward IV
0--42km/h
wheelbase
3350mm
Reverse I
0--8.5km/h
Track base
2360mm
Reverse II
0--16km/h
Mini.ground clearance
470mm
Transmission
countershaft
Max.dumping height
3300mm
Fuel tank
230L
hydraulic tank
270L
Raise time
<=6.8s
Tyre type
26.5-25



High Reliability and Safety

1. Using Heavy-duty frame structure with strong and thick steel in order to adapt to tough working condition.

2. Fully optimized layout of pipes and waterproof connectors make the machine safer under complex working conditions.

3. Four wheel double-line caliper disc braking system creates a safety operating environment.

Comfortable Operation


1. Equipped new luxury cabin with big space and excellent visibility. Low vibration suspending seat with shock-absorber offers operator wide view and a comfortable drive.

2. Integral operation platform with adjustable instrument panel and humanized operation layout makes a comfortable operation environment.

3. The wheel loader has the advantages of flexible and safe operation on narrow sites with a short turning radius.

4. The large-opening engine hood is more convenient for the engine service and maintenance.



6 Ton 966 3.5 M3 Bucket Capacity Front End Loader With 199kw WEICHAI Engine 0

6 Ton 966 3.5 M3 Bucket Capacity Front End Loader With 199kw WEICHAI Engine 1

6 Ton 966 3.5 M3 Bucket Capacity Front End Loader With 199kw WEICHAI Engine 26 Ton 966 3.5 M3 Bucket Capacity Front End Loader With 199kw WEICHAI Engine 3

6 Ton 966 3.5 M3 Bucket Capacity Front End Loader With 199kw WEICHAI Engine 4
