Power: | 300kw | Type: | Silent |
---|---|---|---|
Fuel: | Natural Gas | Rated Voltage: | 400V |
Rated Frequency: | 50HZ | Usage: | Industrial |
Highlight: | 300KW Natural Gas Generator Set,IP23 Natural Gas Generator Set |

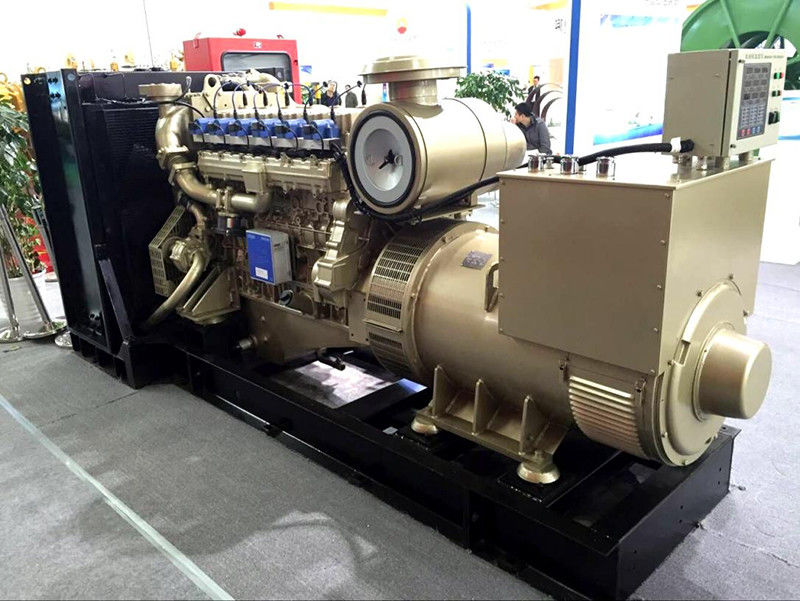

Best Silent 300KW Natural Gas Generating Set,Industrial Natural Gas Generator Factory Price
1, 6 cylinders, supercharged, intercooled, water cooled
2, Three-phase four-wire star with neutral point
3, Scope of supply
Generator set: natural gas engine (including electronic governor, actuator, ignition system, radiator, air filter),
Alternator, control panel, common base (including anchor bolt), battery ( Maintenance-free, 195Ah), exhaust bellows.
battery charger;Muffler and piping, spare parts, tools, technical documents.
Model of Gas generator | J375NG |
Engine model | 6TAA1159C-NG |
Alternator | LEIBAO |
Rated power (kW/KVA) | 300/375 |
Rated speed (r/min) | 1500 |
Rated voltage (V) | 400 |
Rated current (A) | 541 |
Rated frequency (Hz) | 50 |
Rated factor (COSΦ) | 0.8 |
Number of poles | 4 |
Motor protection rating | IP23 |
Insulation grade | H class |
No-load voltage regualtion range (%) | ≥±5% |
Wave distortion | Sine wave, waveform distortion <5% |
Size: length × width × height (mm) |
3847.5×1345×1679 |
Weight (Kg) | 4600 |
