| Engine Brand: | WEICAHI | Engine: | Deutz WP6G125 |
|---|---|---|---|
| Rated Load: | 5000kg | Rated Power: | 92kw |
| Bucket Capacity: | 1.8 Cube | Operating Weight: | 10700kg |
| Highlight: | compact wheel loader,caterpillar wheel loader |
||

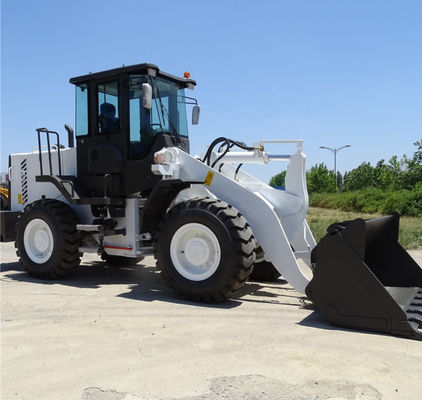

936 3Ton Compact Wheel Loader Radlader Hoflader Mini Loader
1,After-sales Service Provided: Field installation, commissioning and training
2,Applicable Industries: Farms, Construction works , Energy & Mining
| Performance | 1 | rated loading | 3000kg | |
| 2 | overall weight | 10700kg | ||
| 3 | rated bucket capacity | 1.8m3 | ||
| 4 | maximum tractive force | 97KN | ||
| 5 | maximum breakout force | 127KN | ||
| 6 | maximum grade ability | 30℃ | ||
| 7 | maximum dump height | 3100 | ||
| 8 | overall dimension (L×W×H) | 6890×2430×3070mm | ||
| Engine | 9 | model | Deutz WP6G125 | Cummins 6BT5.9-C130 |
| 10 | type | lnline water cooled, four stroke | lnline water cooled, four stroke | |
| 11 | No. of cylinder-bore/stroke | 6—108×125mm | 6—108×125mm | |
| 12 | rated power | 92kw | 97kw | |
| Transmission system | 13 | torque converter | YJ315 | |
| 14 | gearbox mode | Power shift normally engaged straight gear | ||
| 15 | gear shift | 4forward shift 2 reverse shift | ||
| 16 | maximum speed | 40km/h | ||
