| Engine Model: | YC4D80-T20 | Rated Load: | 1800kg |
|---|---|---|---|
| Dumping Angle: | 45 | Speed: | 2400r/min |
| Rated Power: | 58KW | Number Of Axles: | 2 |
| High Light: | compact wheel loader,caterpillar wheel loader |
||

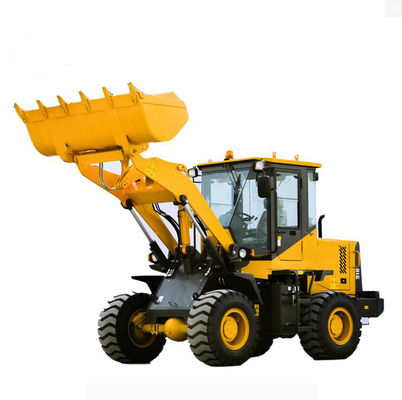

918 China Front End Telescopic Wheel Loader with Cheap Price
1,Type: Water-cooled, four stroke, direct injection
2,Torgue converter:single-stage three-element single-turbine torque converter
3,Type:Load sensing full hydraulic articulated steering
| Rated Bucket Capacity | 1.0 |
| Wheel base | 2260mm |
| Min. ground clearance | 290mm |
| Max. dumping height | 2510mm |
| Total mass | 6150kgs |
| Dumping angle | 45 |
| horizontal crossing radius | 5065mm |
| Min. turning radius | 4452mm |
| Overall parameters | |
| Backet capacity | 0.8(0.6-1.0)m3 |
| Rated load | 1800kg |
| operating weight | 6150kg |
| Max. tractive force | 45kN |
| Max. breakout force | 44kN |
| Tipping load | 32kN |
| Engine | |
| Model | YC4D80-T20 |
| Type | Water-cooled, four stroke, direct injection |
| Rated power | 58kW |
| Rated speed | 2400r/min |
| Engine displacement | 4214ml |
| Clylinder bore/stroke | 4 |
