Product Details:
Payment & Shipping Terms:
|
| Type: | Front Loader | Dimension(Long * Breadth * High): | 4200x1600x2550mm |
|---|---|---|---|
| Rated Load: | 800kg--1000kg | Wheelbase: | 2100mm |
| Max.dumping Height: | 2350mm | Rated Power: | 25kw |
| Highlight: | compact wheel loader,front wheel loader |
||
1,China famous brand Changchai 390 engine provide 25KW rated power.
2,Adjustable instrument, Adjustable seat, tires,4-cylinder,Drum-brake,preheating and heater,Floating function, engine heater 220V
3,Mechanical Joystick control system on standard and Hydraulic Joystick control system can be optional.
4,Equipped with standard bucket with 0.4m³ capacity and Quick hitch and quick change bucket on standard.
5,Standard tire size is 10-16.5,wider size 31*15.5-15 tires and winter tires can be optional.
6,Electric control on joystick (forward and rear, high and low speed) can be optional.
7,Many kinds of accessories can be attached with the loader.

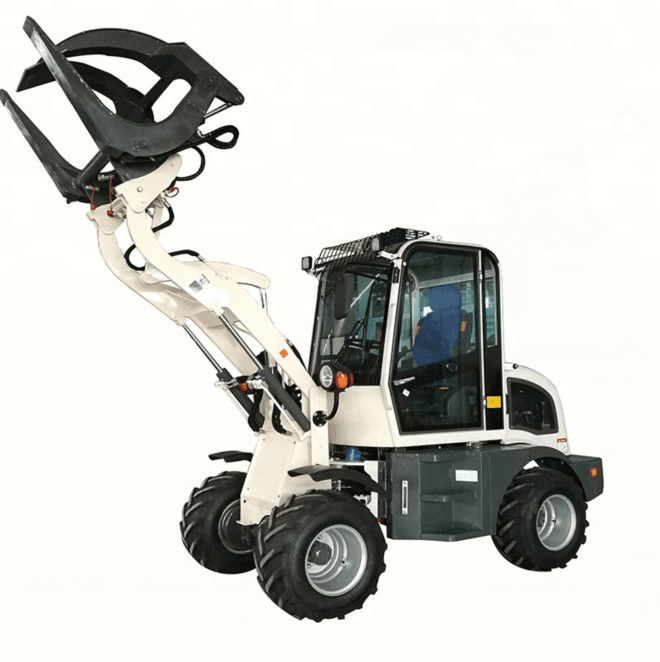

Main Parameters of ZL08 Mini Wheel Loader
| Overall Specifications | |
| Operating Weight | 2800 kg |
| Overall Dimensions L×W×H | 4200×1600×2550 mm |
| Bucket Capacity | 0.4 m³ |
| Rated Load | 800 kg |
| Max Speed | 25 km/h |
| Tire Type | 10-16.5 |
| Max. Grade Ability | 30° |
| Wheel Base | 2100 mm |
| Wheel Tread | 1400 mm |
| Engine | |
| Model | Changchai 390 |
| Rated Power | 25/2400 kw/rpm |
| Type of cooling | Water Cooled |
| Working Range | |
| Max Dumping Height | 21350 mm |
| Min Dumping Distance | 700mm |
| Max Breakout Force | 50 KN |
| Min Ground Clearance | 210 mm |
| Min Turning Radius | 3400 mm |
