Product Details:
Payment & Shipping Terms:
|
| Charging Capacity: | 350L | Speed Of Mixing Drum: | 30r/min |
|---|---|---|---|
| Discharge Way: | Self-loading | Motor Power: | 3KW |
| Productivity: | 4~5 CBM/H | Weight (KG): | 260 Kg |
| High Light: | 4 Wheel Mobile Concrete Mixer Machine,350L Concrete Mixer Machine,Self Discharging Concrete Mixer |
||

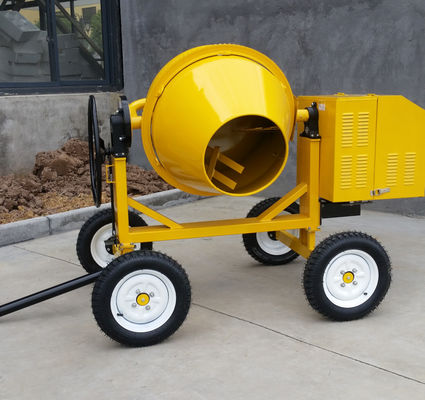

4 Wheel Mobile Concrete Mixer Machine 350L Small Gasoline Diesel Self-Discharging Concrete Mixer For Sale
1. Mobile Portable Cement Concrete Mixer adds a water pump for water circulation between water tank of the engine and the radiator, which keeps the engine water temperature to be stable.
2. To remove the air sucking point from the back to the front is able to avoid sucking the dust. It will be good to prolong the service life of the engine.
3. It has the advantages of compact structure, higher reliability, mixing evenly, big capacity, easy operation, easily movable between sites, etc. The reverse drum concrete mixing machine is widely used in building site, road and bridge project, and many other construction sites.
|
Model
|
350
|
400
|
500
|
700
|
|
Drum capacity
|
350l
|
400L
|
500L
|
700L
|
|
Mixing capacity
|
280L
|
320L
|
400L
|
560L
|
|
Productivity
|
4-5m³/h
|
5-6m³/h
|
6-8m³/h
|
8-10m³/h
|
|
Bags of cement per speed
|
1bag cement
(50kg/bag) |
1bag cement
(50kg/bag)
|
1.5 bag cement
(50kg/bag)
|
2 bag cement
(50kg/bag) |
|
Drum rotation speed
|
25-30rpm
|
25-30rpm
|
20-25rpm
|
20-22rpm
|
|
Drum thickness
|
3/4mm
(upper/bottom) |
3/4mm
(upper/bottom)
|
3/4mm
(upper/bottom)
|
3/4mm
(upper/bottom) |
|
Mixing drum size
|
φ800*900mm
|
φ850*900mm
|
φ950*900mm
|
φ950*1050mm
|
