Product Details:
Payment & Shipping Terms:
|
| Power(W): | 13HP | Dimension(L*W*H): | 1700*850*1250 |
|---|---|---|---|
| Voltage: | 220V 380V | Weight: | 200KGS |
| Blade Size: | 350x150mm | Blade Quantity: | 8 Pcs |
| High Light: | Ride On Concrete Trowel Machine,13HP Concrete Trowel Machine,2mm Blade Scarifier Concrete Grinder |
||

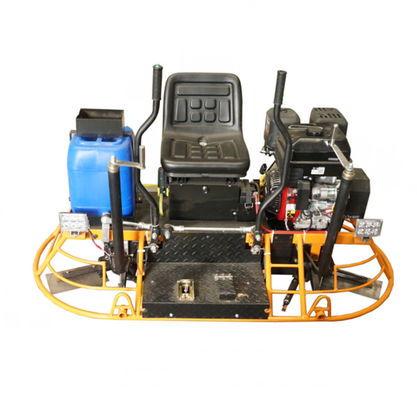

Easy Control 13HP Ride on Power Trowel for Concrete Floor With 350x150mm Blade Size and 2mm Blade Thickness
1. Heavy duty gearboxes-12 month guarantee.
2. Precision machined spider assemblies to exact tolerances-giving minimal wear.
3. Simple yet strong drive train with tried and tested BLM type clutch.
4. Easy positive steering.
5. Optional transport dolly for site use.
|
Model
|
100B | 80B |
|
Engine
|
HONDA GX690/B&S 3864 | HONDA GX690/B&S 3864 |
|
Engine power(HP)
|
24 | 13 |
|
Working speed(RPM)
|
70-150 | 70-150 |
|
Working diameter(mm)
|
1910 | 1530 |
|
Disc diameter(mm)
|
940 | 790 |
|
Blade quantity(Pcs)
|
8 | 8 |
|
Blade sizze(mm)
|
350*150 | 350*150 |
|
Blade thickness(mm)
|
2 | 2 |
|
Weight(KG)
|
360 | 200 |
|
Dimension(mm)
|
2000*1050*1300 | 1700*850*1250 |
