Product Details:
Payment & Shipping Terms:
|
| Power: | 36.8kw | Bucket Capacity: | 0.35M3 |
|---|---|---|---|
| Machine Weight: | 3140 Kg | Dimension(Long * Breadth * High): | 3270*1807*1970mm |
| Rated Load: | 750kg | Moving Type: | Wheel Loader |
| Highlight: | water bowser truck,sanitation dump truck |
||

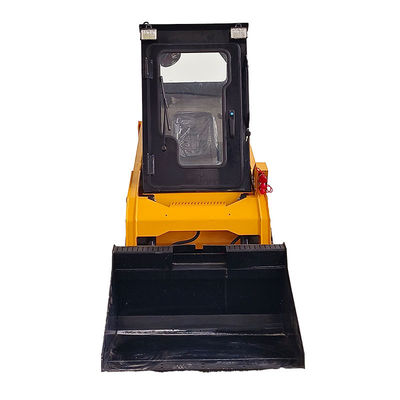

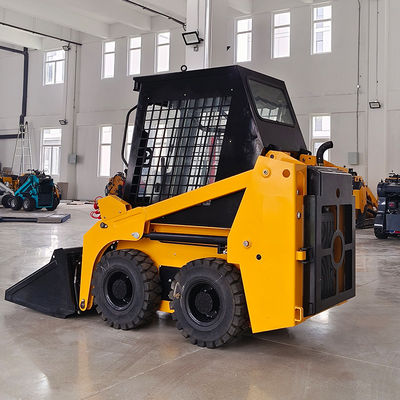

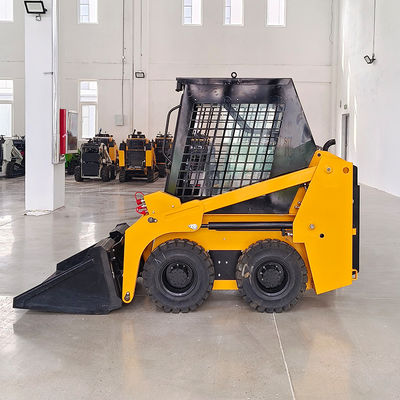

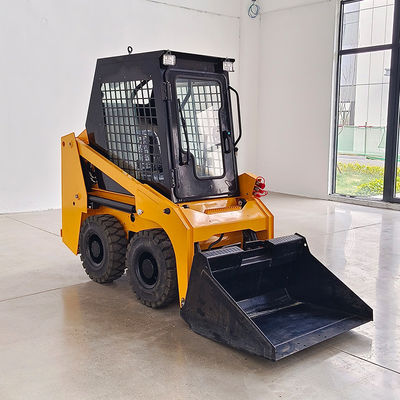

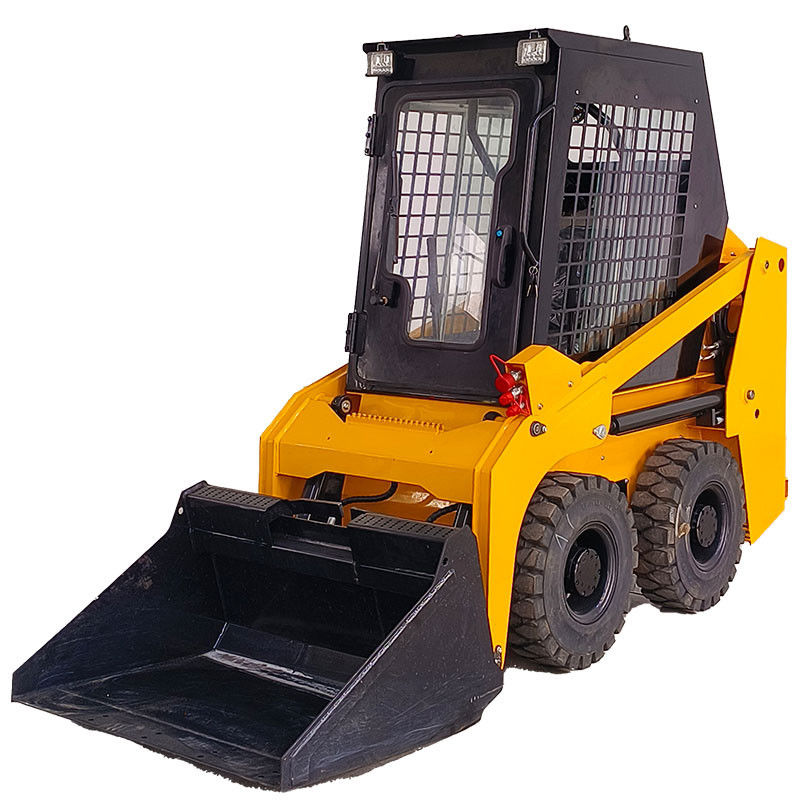

Wholesale Cheap Skid Steer Loader Wheel Loader Earthmoving Machinery Skid Steer
1,This sliding loading is a construction machinery that combines efficiency,
2, flexibility, and versatility. Its compact structure makes it easy to transport and transfer between different sites.
3.Equipped with Cummins four cylinder water-cooled high-performance engine, it has strong power and can adapt to various complex working conditions.
|
Description
|
Unit
|
|
Parameter value
|
|
Rated load
|
kg
|
|
750
|
|
Tipping load
|
kg
|
|
1500
|
|
Operating weight
|
kg
|
|
3140
|
|
Maximum breakout force
|
kN
|
|
18
|
|
Engine
|
Manufacturer
|
|
Xinchai
|
|
Model
|
|
4D27G31
|
|
|
Rated power
|
Hp/kw
|
49.3/36.8
|
|
|
Rated speed
|
rpm
|
2500
|
|
|
Cooling mode
|
|
Water-cooling
|
|
|
Performance parameter
|
Operation mode
|
Mechanical & multi-function electronic control
|
|
|
Tire standard
|
|
10-16.5
|
|
|
Maximum speed
|
Km/h
|
14
|
|
|
Hydraulic system
|
Hydraulic flow rate
|
L/min
|
62.5
|
|
Optional large flow
|
|
/
|
|
|
Hydraulic pressure
|
bar
|
200
|
|
|
Maximum operating height
|
mm
|
|
3878
|
|
Bucket hinge pin height
|
mm
|
|
3057
|
|
Cabin top height
|
mm
|
|
1960
|
|
Maximum horizontal height of bucket bottom
|
mm
|
|
2851
|
|
Length without bucket
|
mm
|
|
2533
|
|
Length with bucket
|
mm
|
|
3310
|
|
Toppling angle
|
°
|
|
40
|
|
Maximum unloading height
|
mm
|
|
2375
|
|
Ground-bucket angle
|
°
|
|
30
|
|
Rotating angle of bucket at highest point
|
°
|
|
83
|
|
Unloading distance
|
mm
|
|
575
|
|
Wheel base
|
mm
|
|
1027
|
|
Departure angle
|
°
|
|
25
|
