Product Details:
Payment & Shipping Terms:
|
| Travel Speed: | 0-7.8km/h | Work Weight: | 3000kg |
|---|---|---|---|
| Grade Ability: | 30-40% | Power(W): | 21kw |
| Dimension(L*W*H): | 2880mmx1275mmx2650mm | Exciting Force: | 2*35kN |
| Highlight: | power road roller,static road roller |
||

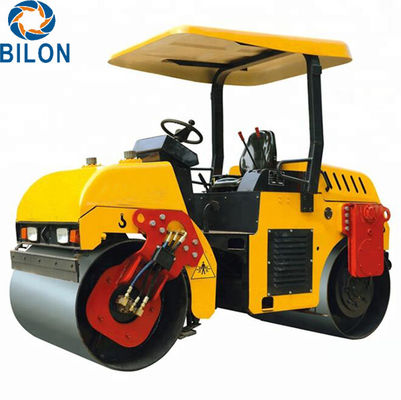

China 3 Ton Double Drum Asphalt Road Roller for Sale
3ton double drum vibratory road roller is hydraulic transmission and vibration,and it mainly used for the compaction work of the asphalt pavement,engineering backfill, gravel, mud, sidewalks, parking lot, sports venues and the narrow site,which is the ideal equipment for the construction of roads, streets, squares of municipal departments with the advantages of vertical vibration, large exciting force and high compaction efficiency.
| Model | BLR3000 |
| Operating Weight | 3000 kg |
| Exciting Force | 35 KN |
| Vibration Frequency | 50 HZ |
| Drum Width/Diameter | 1090/780 mm |
| Static Liner Load | 120/153 N/cm |
| Travel Speed | 2.4 / 5 / 7.8 Km/h |
| Grade Ability | 20% |
| Min Turning Radius | 4500 mm |
| Wheelbase | 2050 mm |
| Min Ground Clearance | 250 mm |
| Diesel/Hydraulic tank Capacity | 60/60 L |
| Diesel Model | ZN385Q |
| Rated power | 21 KW |
| Overall Dimension(L×W×H) | 2880×1275×2650 mm |
