Product Details:
Payment & Shipping Terms:
|
| Drive Wheel: | 6x4 | Capacity (Load): | 21 - 30t |
|---|---|---|---|
| Horsepower: | 290HP | Fuel Type: | Diesel |
| Engine Capacity: | > 8L | Emission Standard: | Euro 2 |
| High Light: | caterpillar dump truck,cat dump truck |
||

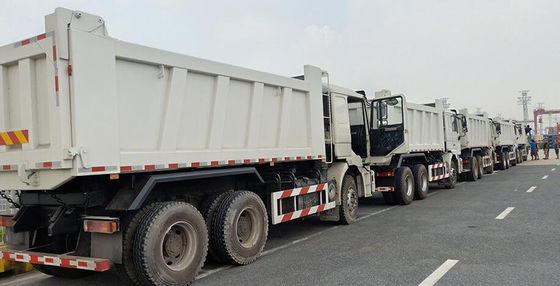

SHACMAN 10 Wheels 18CBM F2000 Dump Truck Low Price Sale
| Cab | MAN F2000 Cab Single bed Air conditioner |
| Dimension(Lx W xH)(mm) | 8275×2500×3450mm |
| Total mass(kg) | 25000kg |
| Kerb mass(kg) | 11200kg |
| Rated mass(kg) | 13670kg |
| Payload(kg) | 25000kg |
| Approach / departure angel | 16/66 |
| Front/rear suspension(mm) | 1525/1600 |
| Max. gradeability (%) | 28 |
| Engine brand | Weichai Engine |
| Engine model | WP10.290E32,290hp |
| Rated output power | 213kw |
| Torque(N.m r. p. m) | 1160N.m/1200-1600rpm |
| Rated speed(rpm) | 2200rpm |
| Emission Standard | E-II |
| Displacement(L) | 9.726L |
| Driving type | 6×4 |
| Axle number | 3 |
| Wheel base(mm) | 3775+1400mm |
| Clutch | φ430 diaphragm spring |
| Gearbox | FAST 10JSD120,10 Forward&2 Reverse,Manual |
| Front axle | 7.5T MAN 7500kg |
| Rear axle | 16T STR 2×16000kg |
| Ratio | 5.73 |
| Steering | ZF technology Left-hand drive(LHD) |
| Type | 12R22.5,10+1pc |
| Brake system | ABS(Four channel) |
| Tank capacity(L) | 380L |
| Max. speed (km/h) | 77km/h |
| Color | Optional |
| Cargo box size(mm) | 5200×2300×1500mm(18m³) bottom8mm,side4mm |
| Lifting style | Middle lifting |
