Product Details:
Payment & Shipping Terms:
|
| Sprinkling Area (m): | 8 - 12m | Engine Capacity: | 4 - 6L |
|---|---|---|---|
| Gross Vehicle Weight: | 6650 | Dimensions (L X W X H) (mm): | 8500X2500X3250 |
| Drive Wheel: | 4x2 | Engine Power: | 170Hp |
| High Light: | garbage dump truck,water bowser truck |
||

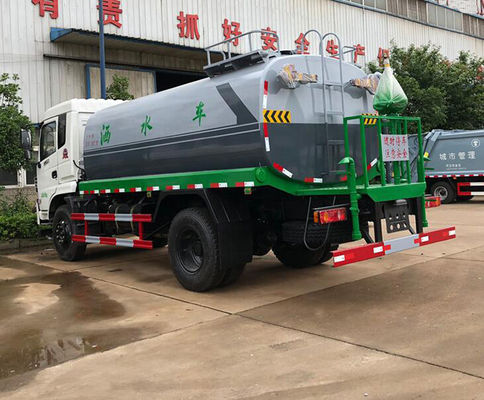

Inner Non-toxic Anti-corrosion 12 to 15 ton Drinking Water Supply Truck
1).Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction.
2).Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform.
3).The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30M.
4).Equipped with fire coupling, flow valves, filter screen and water level gauge.
5).According to customers’ request, the crane, high working platform and spraying machine also can be equipped.
6).Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc.
| Product model and name | SZD5160GPSED5 water supply truck | |||||
| Gross weight(Kg) | 15800 | Drive type | 4X2,LHD | |||
| Curb weight(Kg) | 6650 | Overall dimension(mm) | 8500X2500X3250 | |||
| Approach/departure angle(°) | 25/18 | Cab seats | 3 | |||
| Axle No. | 2 | Front/rear hang(mm) | 1250/2300 | |||
| Axle load(Kg) | 5990/9000 | Wheelbase(mm) | 3950 | |||
| Max speed(Km/h) | 90 | |||||
| Chassis specification | ||||||
| Chassis model | EQ1160GD5DJ | Manufacturer | Dongfeng | |||
| Brand name | Dongfeng | Dimension(mm) | 6500×2462×2740 | |||
| Tire specification | 9.00-20 | Tire No. | 6+1(One spare tire) | |||
| Steel spring number | 9/11+8 | Front track base(mm) | 1940 | |||
| Fuel type | Diesel | Rear track base(mm) | 1810/1800 | |||
| Emission standard | Euro 3 | Transmission | 6 forward gear | |||
| Cab | One and half row,3 person allowed with power steering,A/C | |||||
