| Max Rise Height: | 3700 Mm | Max Digging Depth: | 3400 Mm |
|---|---|---|---|
| Max Digging Radius: | 4600mm | Max Dumping Height: | 2700 Mm |
| Max Digging Height: | 5000 Mm | Min Turning Radius: | 4800 Mm |
| Highlight: | small backhoe loader,mini backhoe loader |
||

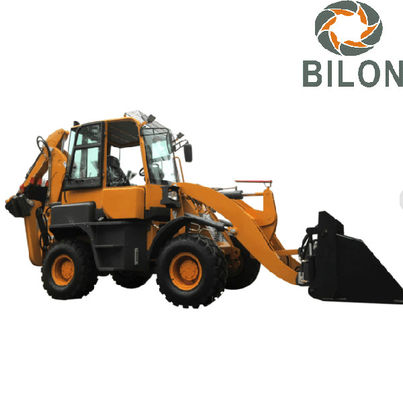

Hydraulic Pilot Joystick Mini Tractor Backhoe Loader With 0.2M3 Excavating Bucket
(1) Four wheel drive,power shifting transmission with hydraulic torque converter,hydraulic steering system and joystick pilot control system.
(2) Equipped with XinChai A498BT engine which can meet Euro III emission standard,low noise,low emission,powerful and reliable.
(3) In order to have much wider and brighter space,we use laminated safety glasses.The cabin is of three doors,can be tilted forward by hydraulic system for convenient maintenance.
(4) Wing-spread legs improved excavating stability in rock breaking and deep excavation.
| Overall specifications | Engine | ||||||||
| Operating Weight | kg | 5200 | Model | XinChai A498BT1 | |||||
| Loading Bucket Capacity | M3 | 0.6 | Rated Power | Kw | 36.8 | ||||
| Backhoe Bucket Capacity | M3 | 0.2 | Type | 4 cylinders, Liquid cooled Diesel | |||||
| Rated Load | kg | 1600 | Emission standard | Euro III | |||||
| Max Speed | Km/h | 18-28 | Engine Flow | ml/r | 40 | ||||
| Tire Type | 20.5-16 | Backhoe Working Range | |||||||
| Max. Grade Ability | % | 25 | Max Digging Depth | mm | 3400 | ||||
| Overall dimensions | Max DiggingHeight | mm | 5000 | ||||||
| Transport Dimensions | L*W*H | 6000×1885×2900 | Max Digging Radius | mm | 4600 | ||||
| Min Ground Clearance | mm | 260 | Turning Angle of Movable Arm | ° | 180 | ||||
| Wheel Base | mm | 2000 | Loading Working Range | ||||||
| Wheel Tread | mm | 1530 | Max Rise Height | mm | 3700 | ||||
| Transmission system | Max Dumping Height | mm | 2700 | ||||||
| Transmission box | Hydraulic transmission box | Min Dumping Distance | mm | 1000 | |||||
| Torque converter | Hydraulic | Min Turning Radius | mm | 4800 | |||||
| Steering gear | Full hydraulic | Rise Time of Movable Arm | s | 3.5 | |||||
| Operating control | Joystick pilot | Fall Time of Movable Arm | s | 2.5 | |||||
