Product Details:
Payment & Shipping Terms:
|
| Type: | Backhoe Loader | Dimension(Long * Breadth * High): | 6000x1885x2900mm |
|---|---|---|---|
| Operating Weight: | 1600kg | Loading Bucket Capacity: | 0.8cbm |
| Backhoe Bucket Capacity: | 0.2m3 | Max.Digging Depth: | 3400mm |
| Highlight: | small backhoe loader,mini backhoe loader |
||

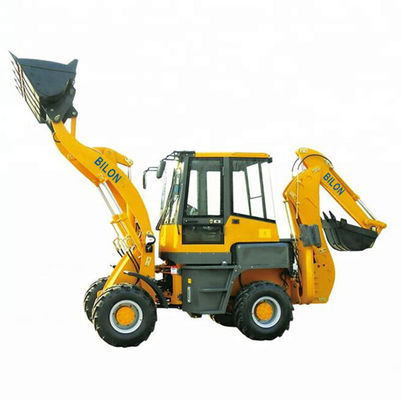

1.6 Ton Small Backhoe Loader
type backhoe loader is one kind of multifunctional construction machinery that integrates the digging and loading.It can also be fitted with various attachment,including 4 in 1 bucket,breaking hammer,auger,snow shovel,quick change pallet fork and so on,to meet multiple working needs.
1,Equipped with XinChai A498BT1 engine which can meet Euro III emision standard,low noise,low emission,powerful and reliable.
2,The backhoe loaders adopt four wheel drive,power shifting transmission with hydraulic torque converter,hydraulic steering system and joystick pilot control system.
|
Overall specifications |
Engine |
|||||
|
Operating Weight |
kg |
5200 |
Model |
XinChai A498BT1 |
||
|
Overall Dimensions |
L*W*H |
6000×1885×2900 |
Rated Power |
Kw |
36.8KW |
|
|
Loading Bucket Capacity |
M3 |
0.6 |
Backhoe Working Range |
|||
|
Backhoe Bucket Capacity |
M3 |
0.2 |
Max Digging Depth |
mm |
3400 |
|
|
Rated Load |
kg |
1600 |
Max Digging Height |
mm |
5000 |
|
|
Max Speed |
Km/h |
18-28 |
Max Digging Radius |
mm |
4600 |
|
|
Tire Type |
|
20.5-16 |
Loading Working Range |
|||
|
Max. Grade Ability |
% |
25 |
Max Rise Height |
mm |
3700 |
|
|
Min Ground Clearance |
mm |
260 |
Max Dumping Height |
mm |
2700 |
|
|
Wheel Base |
mm |
2000 |
Min Dumping Distance |
mm |
1000 |
|
|
Wheel Tread |
mm |
1530 |
Min Turning Radius |
mm |
4800 |
|
