Product Details:
Payment & Shipping Terms:
|
| Sprinkling Area (m): | 12 - 16m | Engine Capacity:: | < 4L |
|---|---|---|---|
| Tank Volume: | < 5000L | Dimensions (L X W X H) (mm): | 6025X1980X2390mm |
| Gross Vehicle Weight: | 7100 | Distance Of Spraying Water: | ≥28 |
| High Light: | garbage dump truck,water bowser truck |
||

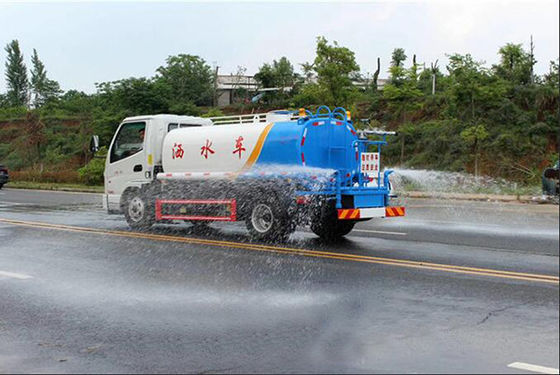

4 Ton 4m3 4000 Liters Sprinkler HOWO Truck Water Bladder
(1). Capacity: 3-30cbm water truck,3-30 ton water tank truck,3000 liter- 30 000 liter water tanker truck.
(2). Steering wheel: both left and right hand drive,meet the needs of different countries.
(3). Emission standard: option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 water truck
(4). Truck chassis: option japan and china brand
| Vehicle | HOWO water tank truck | |
| Overall dimensions | mm | 6025x1980x2390 |
| Water tanker | L | 4000 |
| GVW | kg | Appro×7100 |
| Curb weight | Appro×3100 | |
| Loading weight | Appro×4000 | |
| Wheel base | mm | 3360 |
| Front/Rear overhang | 1072/1655 | |
| Approach/departure angle | ° | 21/13 |
| Front/Rear axles | kg | 2000/3500 |
| Standard configuration |
1) Carbon steel water tank, thickness 4mm. 2) With water pump. 3) With rear working platform. 4) With suction pipe. 5) With fire connector. 6) With gravity valve. |
|
| Applicable scope |
a. for a variety of road cleaning b. City green sanitation c. Trees, green belt and lawn watering d. High altitude building rinse e. Delivery water |
|
| Special performance |
1) Front and rear spraying water. 2) Left and right side spraying water. 3) Platform has a sprinkler, spraying water. 4) Water column can be adjusted into mist 5) Width of spraying water : ≥14m. 6) Distance of spraying water : ≥28m. |
|
