| Rated Load: | 10000kg | Dimension(Long * Breadth * High): | 5500*2300*2600 |
|---|---|---|---|
| Overall Weight: | 16000kg | Rated Power: | 136hp |
| Engine Capacity: | 4 - 6L | Fuel Type: | Diesel |
| High Light: | articulated dump truck,cat dump truck |
||

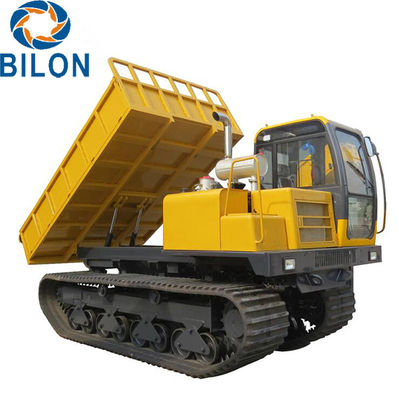

10 Ton Garden Transporter Crawler Mini Dumper Truck
Crawler Dumper is a frequently-used of special track vehicle , it is widely used in agriculture, minerals, water conservancy and other large and medium-sized projects for earth, rock, coal and other displacement work. Crawler transport vehicles according to their product rated capacity (load capacity) can be divided into light crawler and heavy-duty crawler.
1. Transport vehicles can operate freely in mud and icy roads
2. Self-unloading design, tracked walking, motor walking, greatly extended the use ability.
3. The specific size can be customized according to the requirements
4. Strong carrying capacity, large climbing ability, simple operation and easy maintenance.
Operating weight | Kg | 16000 |
Rated load | Kg | 10000 |
Engine Brand | Weichai or Cummins | |
Engine Model | 6105 or 6BT5.9-C130
| |
Engine Power | 100Kw/2200rpm | |
Cargo box Length | mm | 3600 |
Cargo box Width | mm | 2500 |
Cargo box Height | mm | 600 or more |
Track Width | mm | 500 |
Track Length | mm | 2560 |
Min. ground clearance | mm | 400 |
System pressure | Mpa | 31.5 |
Max. Flux | L/min | 2*180 |
Speed | Km/h | 7 |
Dumper Length | mm | 5500 |
Dumper Width | mm | 2300 |
Dumper Height | mm | 2600 |
