Product Details:
Payment & Shipping Terms:
|
| Dimension(Long * Breadth * High): | 5920x2250x3770 Mm | Rated Load: | 2500kg/200kg |
|---|---|---|---|
| Engine Model: | Yuchai | Rated Power: | 75kw |
| Front Load Bucket Capacity: | 1m3 | Operating Weight: | 8200kg |
| Highlight: | small backhoe loader,compact backhoe loader |
||

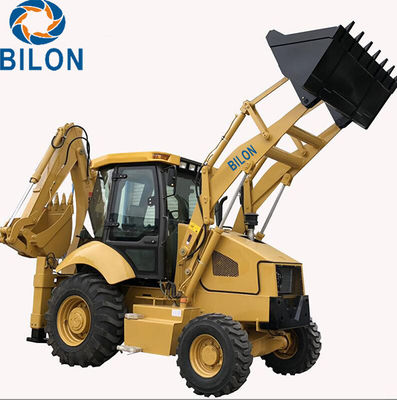

1.5Ton,3Ton Chinese Mini Backhoe Loader
The machine is of compact structure and logical layout. With beautiful apearance and design of
components embody hommization adequately.
- The performance has achieved advanced level in China. Using domestic famous brand hydraulic
system and imported transmission system for loader.
- The professional designed operation system as well as reasonable layout realies comfortable,
convenient and labor-saving operation, the steering axle with big swing angle and steering angle.
- It can be fixed with many accessories according to requirements!
|
Main Parameter
|
Operating Weight | 8200KG |
| Overall Dimension (L*W*H) | 5920×2250×3770 | |
| Wheel base | 2200mm | |
| Min. Ground Clearance | 300mm | |
| Bucket Capacity | 1.0m3 | |
| Breakout Force | 38KN | |
| Loading lifting Capacity | 2500kg | |
| Bucket Dumping Height | 2742mm | |
| Bucket Dumping Distance | 925mm | |
| Digging Depth | 52mm | |
| Backhoe Capacity | 0.3 m3 | |
| Max. Digging Depth | 4082/4500mm | |
| Swing Angle of Excavator Grab | 190o | |
| Max. Pulling Force | 39KN | |
|
ENGINE
|
Model | YuchaiYC4A105Z-T20 |
| Type | In Line Direct injection Four-Stroke and Injection Combustion Chamber | |
| Cylinder-Inside Diameter-Stroke | 4-105*120 | |
| Rated Power | 75KW | |
| Rated Speed | 2400r/min | |
| Min.Fuel Consumotion | ≤242g/km.h | |
| Max. Torque | ≥252N.M | |
| Displacement | 4.4L |
