TypeStatic Linear Pressure: | 120 153N/CM | Travel Speed: | 0-12km/h |
---|---|---|---|
Grade Ability: | 50% | Power(W): | 21KW |
Nominal Amplitude: | 0.5mm | Fuel Type: | Diesel Air Cooling |
Highlight: | static road roller,road roller machine |

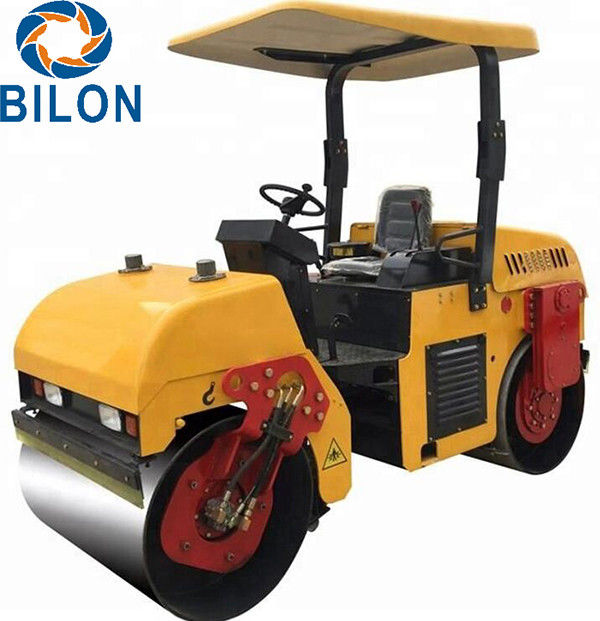

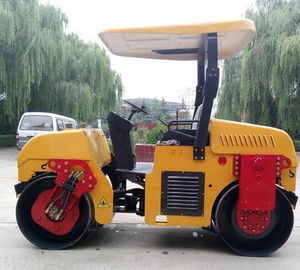

New look Full 3 Ton Hydraulic Road Roller with Cabin Vibratory Road Roller
This product is small type double drum hydraulic vibratory roller. Applied to mending maintaining various roads, express way shoulder, side work, parking area, playground and gardenlawn. Especially suitable for compact wayside, pipeline channel and drainagetrench and all kinds of grooves backfill.
MAIN FEATURES:
1. Hydraulic vibrating andsteering, Back drum mechanical drive.
2. The chain drive withside gear transmission and hydraulic vibration in the front drum .
3. China top brand 3cylinder water-cooling diesel motor, strong powerand fuel-efficient.
4.The front and rear framearticulated structure, turning agile. Clamp-type drum brackets better for edge.
5.The gearboxuses Japanese technology with easy gearshift and three travel speedsposses good compaction and fast transportation.
MODEL | BL-3000 |
Operating Mass | 3000kg |
Diesel Model | 385Q |
Diesel Power | 21KW |
Exciting Frequency | 35KN |
Staic Linear Load | 120 153N/CM |
Vibration Frequency | 50HZ |
Vibration Drum Width | 1090mm |
Drum diameter | 780mm |
Minimum turning radius | 4500mm |
Wheelbase | 2050mm |
Min.ground clearance | 260mm |
Dimension(L*W*H) | 2800*1275*2650mm |
Traver Speed | 2.4 km/h Gear I |
5km/h Gear II | |
7.8km/h Gear III | |
Gradeability | 20° |
Fuel Capacity | 60L |
Water Tank Capacity | 90L |
