| Slew Speed: | 9.5r/min | Operating Weight: | 6000 Kg |
|---|---|---|---|
| Bucket Capacity: | 0.22m3 | Maximum Digging Height: | 5750 Mm |
| Maximum Digging Depth: | 3860 Mm | Max Digging Radius: | 4023 Mm |
| High Light: | small excavator machine,cat mini excavator |
||

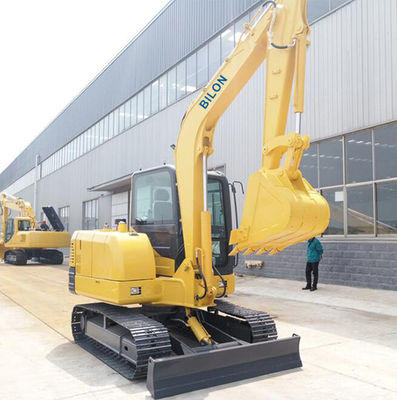

China Made 6T Mini Hydraulic Crawler Excavator
* Imported YANMAR 4TNV94L-SSN engine and hydraulic system with global warranty.
*Full sealed cabin with A/C and comfort seat make operator easy to work.
*Luxurious cab interior,with airbag shock absorption seat and pilot steering machanism well reduces labor intensity and working noise.
*Equipped with reinforced crawler.
| Overall Specifications | Engine | |||
| Total weight | 5.85t | Model | YANMAR 4TNV94L-SSN | |
| Overall dimensions | 5960*1960*1995(Boom top) | Power | 35.5/2200kw/r/min | |
| 5960*1960*2690(Cab roof) | ||||
| Bucket capacity | 0.22m³ | Working Range | ||
| Bucket rod length | 1630mm | Min. ground clearance | 360mm | |
| Length of swing arm | 3000mm | Min.rotary radius | 2380mm | |
| traveling speed | 4.2/2.2km/h | Max.excavating height | 5750mm | |
| Grade ability | 70% | Max.dumping height | 3980mm | |
| Volume of fuel tank | 100L | Max.digging depth | 3860mm | |
| Slew speed | 9.5r/min | Max.vertically digging depth | 3040mm | |
| Bucket excavating force | 38.5kn | Max. digging reach | 6170mm | |
| Ground pressure | 33.5kpa | Track | ||
| Hydraulic pump model | PSVD2-27E | Track shoe length | 2560mm | |
| Operating pressure | 24kpa | Track width | 1960mm | |
| Hydraulic oil tank volume | 80L | Track gauge | 1560mm | |
