| Power: | 220kw | Rated Speed: | 1500 |
|---|---|---|---|
| Frequency: | 50Hz | Cylinder No.: | 6 |
| Displacement: | 9.84L | Size: | 2900*1050*1660mm |
| High Light: | 250kw Trailer Mobile Diesel Generator,9.84L Trailer Mobile Diesel Generator |
||

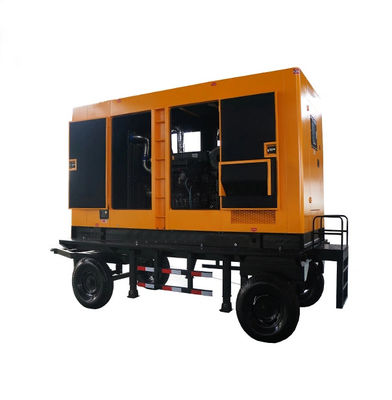

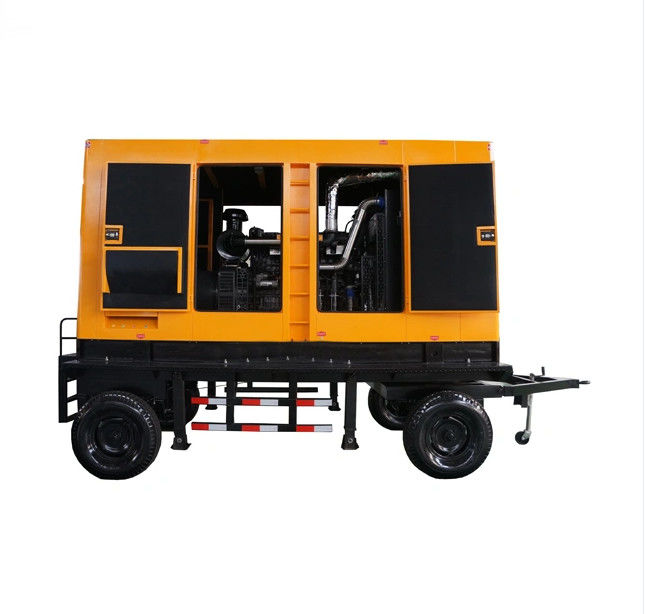

Low Noise 250kw 380V Trailer Mobile Diesel Generator with Higher Reliability Yuchai Engine
Yuchai Diesel Generator Set Series is our hor product. Forged steel crankshaft made in a sing piece, and cylinder head made out of high-quality alloy cast iron; impoerted cylinder block rough cast features with smaller
in size, lighter in weight, less vibration, lower noise and higher reliability; the overhaul period is over 12000 hous.
Product Technical Parameter
Genset
Prime Power: 220kw
Standby power: 250kw
Frequency: 50Hz
Speed: 1500rpm
Voltage: 220/380V
Phases: Three phases, four wires
Engine
Brand: Yuchai
Model: YC6M360L-D20
Power: 240/264KW
Engine speed: 1500rpm
Type: 6 cylinders,Direct injection,4-stroke, water cooled
Aspiration: Turbocharged and air to air inter-cooled
Displacement: 9.84L
Fuel Consumption: 197g/kw.h
Type of Governor: Electronic governor
Bore * Stroke: 120*145mm
Lubricating Capacity: 28L
Alternator
Brand: Stamford Standard(Leroy Somer/ Marathon/ Henjo/Youkai are options)
Output prime power: 220kw
Number of phase: 3
Bearing: Single
Coupling: Direct
Voltage Regulation: ±1%
Insulation class: H
Protection class of enclosure: IP23
