Product Details:
Payment & Shipping Terms:
|
| Moving Type: | Wheel Excavator | Maximum Digging Depth: | 3331 Mm |
|---|---|---|---|
| Maximum Digging Height: | 6369 Mm | Max Digging Radius: | 5915 Mm |
| Engine Power: | 42Kw Or 55 Kw | Overall Dimensions(mm): | 5365*2024*2710 Mm |
| High Light: | cat mini excavator,mini excavator machine |
||

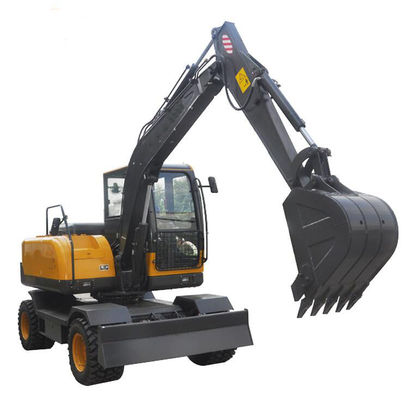

Chinese Best 6 Ton New Wheel Excavator Machines For Construction
1- Famous brand engine features strong power and low fuel consumption.
2- Imported hydraulic system features high working efficiency.
3- Professional structural parts and working mechanism features reliability and durability.
4- Breaking pipeline equipped improves the working performance.
5- Humanized design features comfortable operation and convenient maintenance.
6- Shimadzu main pump and Parker valve
| The Parameter of 6 ton wheel excavator | |||
| wheel hydraulic excavator | unit | 65-9A | |
| motor | model | Xinchai/YTO | |
| hydraulic pump | model | SHIMADZU | |
| main val | model | Korea imported | |
| Operating weight | kg | 5800 | |
| volume of bucket | m³ | 0.24 | |
| power | kw/rpm | 42 or 55/2300 | |
| Dimensions | overall width | mm | 2000 |
machine height | mm | 2710 | |
| overall length | mm | 5365 | |
machine height | mm | 2454 | |
| ground clear ance(bob-weight) | mm | 985 | |
| min.ground clearnce | mm | 280 | |
| tyre gauge | mm | 1560 | |
| wheel shaft diameter | mm | 2310 | |
| mouldboard width | mm | 2024 | |
| mouldboard height | mm | 310 | |
