Product Details:
Payment & Shipping Terms:
|
| Power(W): | 148kw | Max. Paving Thickness: | 350MM |
|---|---|---|---|
| Paving Width: | 3-9M | Weight: | 23000kg |
| Paving Speed: | 0-18 | Gradeability(%): | 20 |
| High Light: | road construction vehicles,road construction tools road |
||

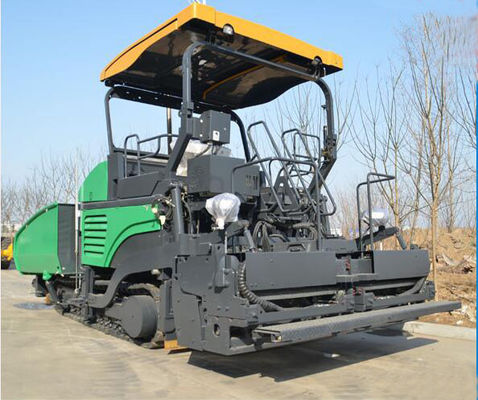

23 Ton Weight China Road Granite Pavers
1,Key words:23T weight china granite pave
2,Dimension(L*W*H):7800*9000*3800
3,Warranty:1 Year
4,Engine:BF6M1013EC
| Basic paving width (m) | 3 |
| Maximum paving width (m) | 9 |
| Maximum paving thickness (mm) | 350 |
| Paving speed (m / min) | 0-18 |
| Hopper capacity (t) | 14 |
| Theoretical productivity (t / h) | 800 |
| Gradeability(%) | 20 |
| Engine | BF6M1013EC |
| Power (kw) / speed (rpm) | 148/2300 |
| Screed | DVS9030Q |
| Heating method | Centralized controlled heating |
| Vibrating speed (r / min) | 0-1470 |
| Main vibrating stroke (mm) | 5 |
| Parametric stroke (mm) | 2000/5/10 |
| Piezo frequency (Hz) | 0-50 |
| Total weight / maximum working weight (t) | 23/28 |
| Dimensions L × B × H (mm) | 7800*9000*3800 |
| Shipping size L × B × H (mm) | 7800*3000*3360 |
